Turbo Repair Kit GENUINE Mitsubishi TD04 13T 15T 16T 18T 19T 20T Super Back

Application
 TD04 7D, 8T, 9T, 10T, 12T, 13T, 14T, 15T, 16T, 18T, 19T Turbo

Applicatio Detail
- BMW: 94~ 525TD / 525TDS / 725TDS TD04-13T Turbo / 49177-06451, 49177-06461, 49177-06471, 49177-06481, 49177-06581, 49178-06571

- SUBARU: WRX TD04L-13T 49377-04100, 49377-04200, 49377-04300

- KUBOTA: V3300-T / TD04-12T / 49177-03130

- Mitsubishi : 2.5L/4D56T Delica / L300 49177-01515, 49177-01503, 49177-01504,
49177-01505, 49377-02002, 49377-02002, 49177-01513, 49177-02531, 49177-02530.
2.8L/4M40T : Pajero/Shogu- 49377-03033, 49377-03040, 49377-03050, 49377-03053.

- Renault: elsatis/Avantime 49377-07300

- SAAB:  9.5, 9000 Aero B234R B235R, 49189-01800, 49189-01700 TD04HL-15T

- VOLVO: 850 S70 49189-01450, 49189-01455, 49189-01330, 49189-01350, 49177-01335,49189-05010, 49189-05101, 48189-05211, 49189-05310, 49189-05411, 49189-05111, 49189-05200, 49189-05100.
  S40/V40: 49377-06xxx ( TD04L-12T-8.5 & TD04L-14T-6)

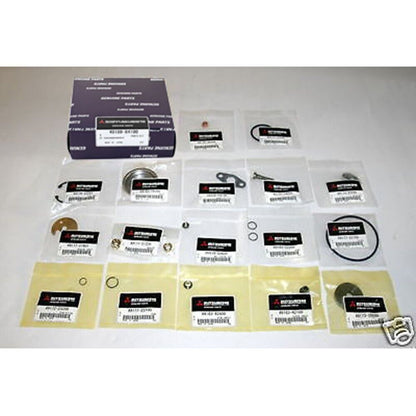

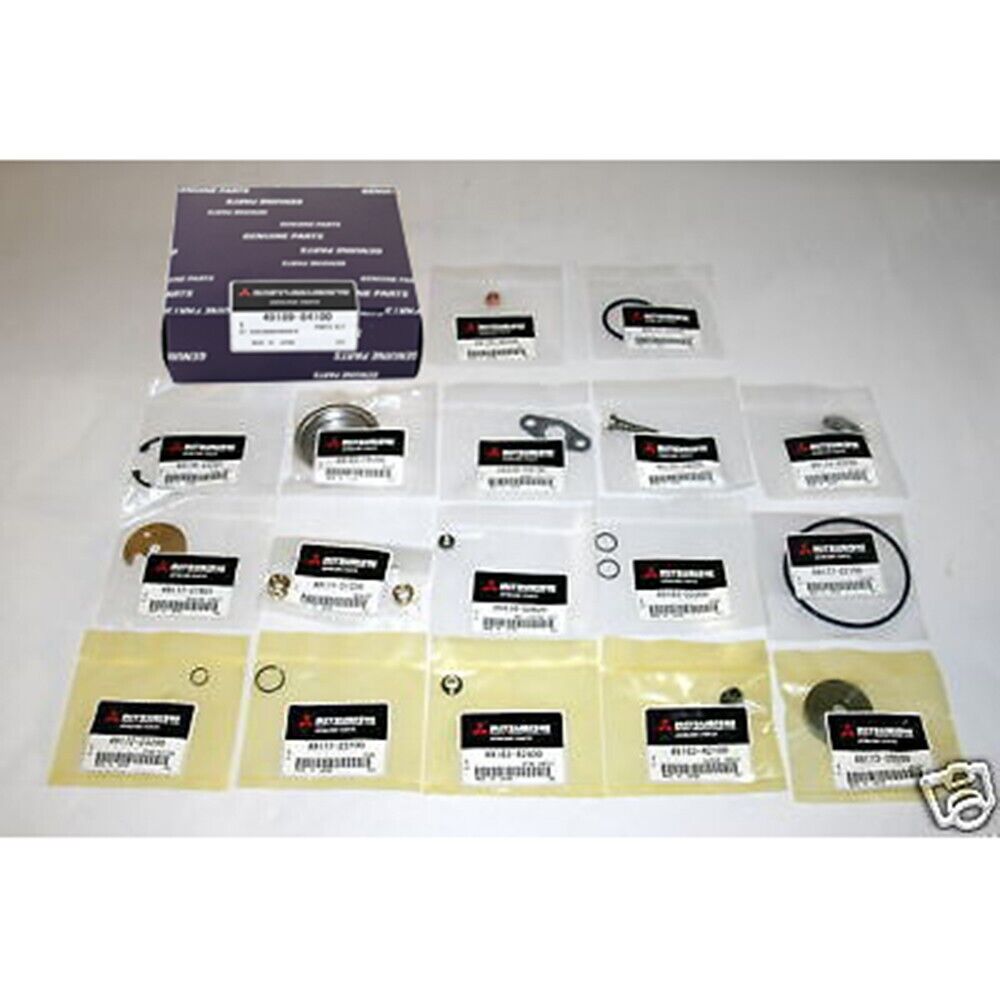

Detail
- 49135-42200 : 1 x Turbine Shaft Nut

- 49177-22200 : 1 x O-Ring Insert side

- 49170-23201: 1 x Ring Snap

- 49183-19300: 1 x Heart Plate (Heart Shield)

- 34336-04100: 1 x Gasket Oil Drai- Pipe

- 49170-14020: 1 x Bolt

- 49173-22200: 1 x Oil Deflector

- 49177-21601 : 1 x Thrust Bearing

- 49177-21220 : 2 x Journal Bearing

- 05634-00620 : 1 x Nut (For C-Clamp bolt)

- 49183-22300 : 2 x Ring (For fix Journal Bearing)

- 49177-22100 : 1 O-Ring (CHRA to Cover)

- 49172-23200 : 1 x Pisto- Ring (Compressor Side)

- 49177-23100 : 1 x Pisto- Ring (Turbine Side)

- 49183-42400 : 1 x Thrust Ring

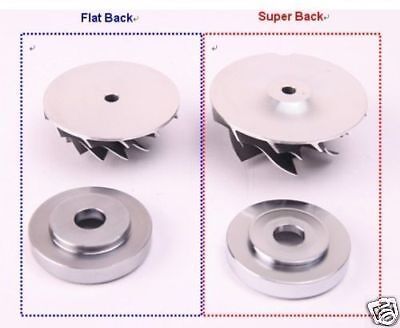

- 49183-xxxxx : 1 x Thrust Sheeve (Super Back)

Quantity
1 set

Manufacture
Mitsubishi Heavy Industry, Japan
