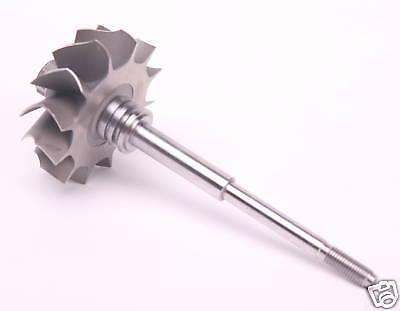

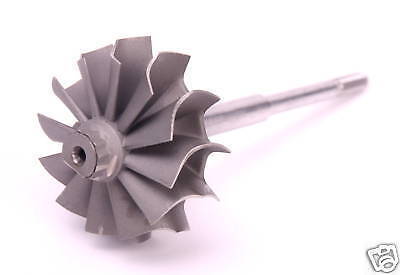

Turbine Wheel Mitsubishi TF035HM 4D56T 4M40T Delica

 MHI P/N.
 49135-30100

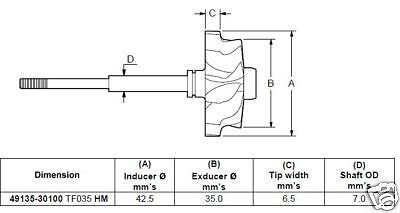

Dimension
- Inducer: 42.5 mm / 1.67 inch
- Exducer: 35 mm / 1.37 inch
- Tip: 6.5 mm / 0.25 inch
- Turbine Shaft OD: 7mm / 0.27 inch
- No. of Blades : 12

Application
- Ford Transit 00~ PUMA 2.4L 49135-06010, 49135-06020, 49135-06030
- SUBARU : 49135-04690, 49135-04600, 49135-04700
- Hyundai 4D56T / A1 : 49135-04000, 49135-04010
- IVECO Alfo Genset, Cina, Daily: 49135-05000, 49135-05010, 49135-05020, 49135-05030, 49135-05060, 49135-05080
- Fiat Ducato : 49135-05050
- Mitsubishi 4D56T 2.5L / 4M40T 2.8L : 49135-03300, 49135-03110, 49135-03101, 49135-02110, 49135-02230, 49135-03130
- Renault Messenger 2.8L: 49135-05020, 49135-05030, 49135-05040, 49135-05070

Quantity
- 1 pcs

Wheel Material
- Upgrade Inconel 718 for performance ( Not 713 Normal Low Inconel )

Balance
- Balanced on Schenck / Ready to use
