Kinugawa Thermo-Isolating O2 Bungs (Screw In) Reduce exhaust gases flow

Application
Tired of burning out O2 sensors on your pre-turbo O2 installation ?

Now you don't have to. The Thermo-Isolating O2 bungs either screw into your existing O2 bung, or weld into manifold or header.

These bungs then isolate the O2 from the direct heat a pre-turbo sensor sees. They do this by reducing the exhaust gases flowing over the sensor, as well are lift the element away from the hot manifold with 8 heat sinks for weld-in, and 4 for screw in.

The Thermo-Isolating O2 bungs are machined from Billet 310SS for extreme heat resistance. The dot on the hex must face into the exhaust stream to form a venturi effect and move the exhaust through the bung and across the sensor effectively.

For the weld in, this is easily achieved, for the screw in, there are numerous ways to do it annealing the washer is one way, this will allow it to be very soft, and you can get more turn on, more washers are also available for a small charge if you wish to stack to get the right orientation.

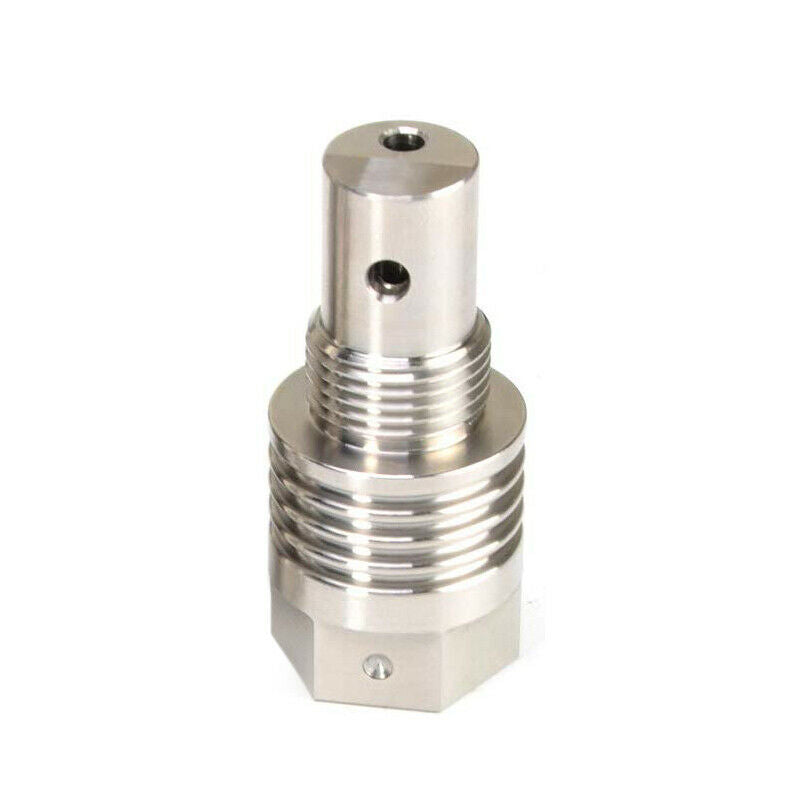

The listing is for the screw in adapter ( Pic #1)

Qty
1 PCS

Material
Stainess 310
