Product Info
|
|
Item Name
|
Kinugawa Upgrade TD05HR-20G-10.5T EVO9 Twin Scroll Billet Turbocharger w/ Adjustable Actuator and 9 Blades Turbine Wheel
Free with KAMAK Turbo Boost Pressure 6 Color LED Gauge
|
|
Item No.
|
331-02034-050
|
|
Application
|
- 4G63T Mitsubishi EVO9 / EVO IX Upgrade to Billet TD05HR-20G, Direct Bolt On
- 4G63T Mitsubishi EVO4~8 / EVO IV~VIII Upgrade to EVO9 Series Billet Turbocharger
MHI P/N: 49378-01580
|
|
Wheel Spec.
|

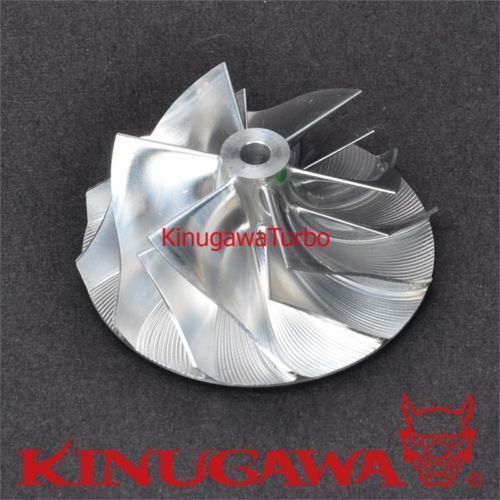

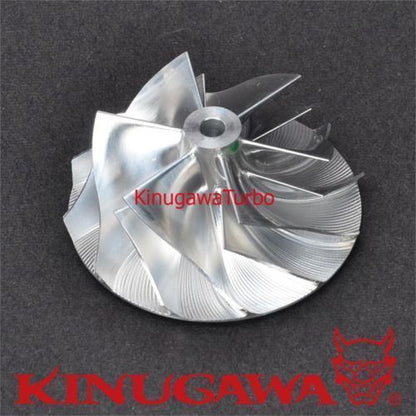

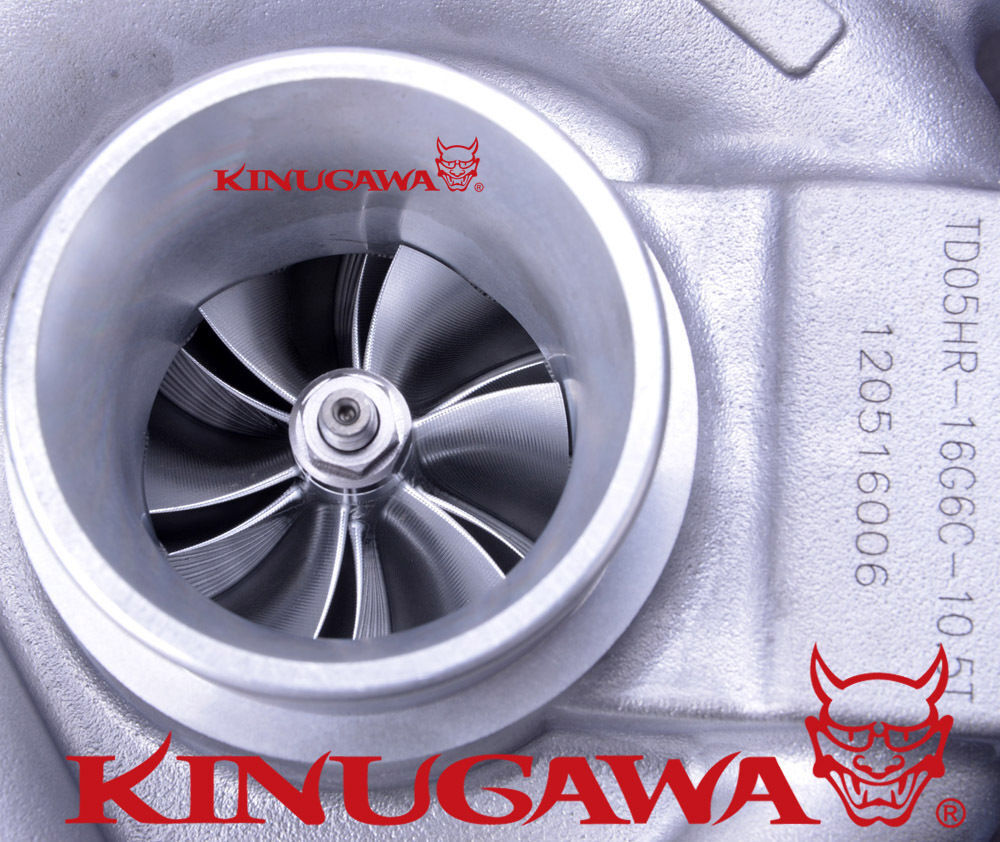

- Comp. Wheel: 52.3 / 68 mm (Billet 6+6 Blades / 20G)

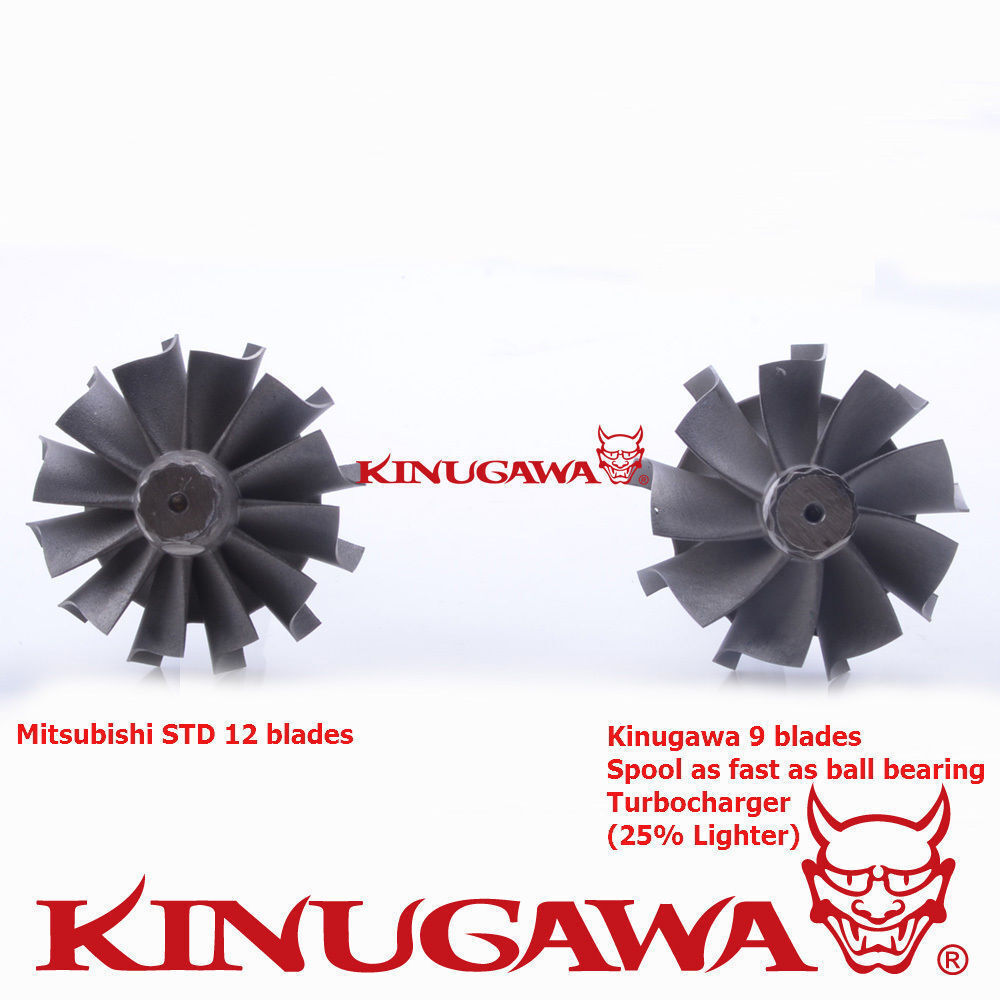

- Turbine Wheel: 49.2 / 56mm
(High Flow 9 Blades / TD05HR)
|
|
Compressor Housing
Turbine Housing
|
10.5 cm^2 Single Puck Turbine Housing
|
|
Bearing System
|
- Journal Bearing
- KAMAK Performance Thrust Bearing Kit with larger thrust ring d flinger
|
|
Cooling System
|
Oil & Water cooled system
|
|
Max HP
Boost Limit
Suggested Limit
|
|
|
Kit includes
|

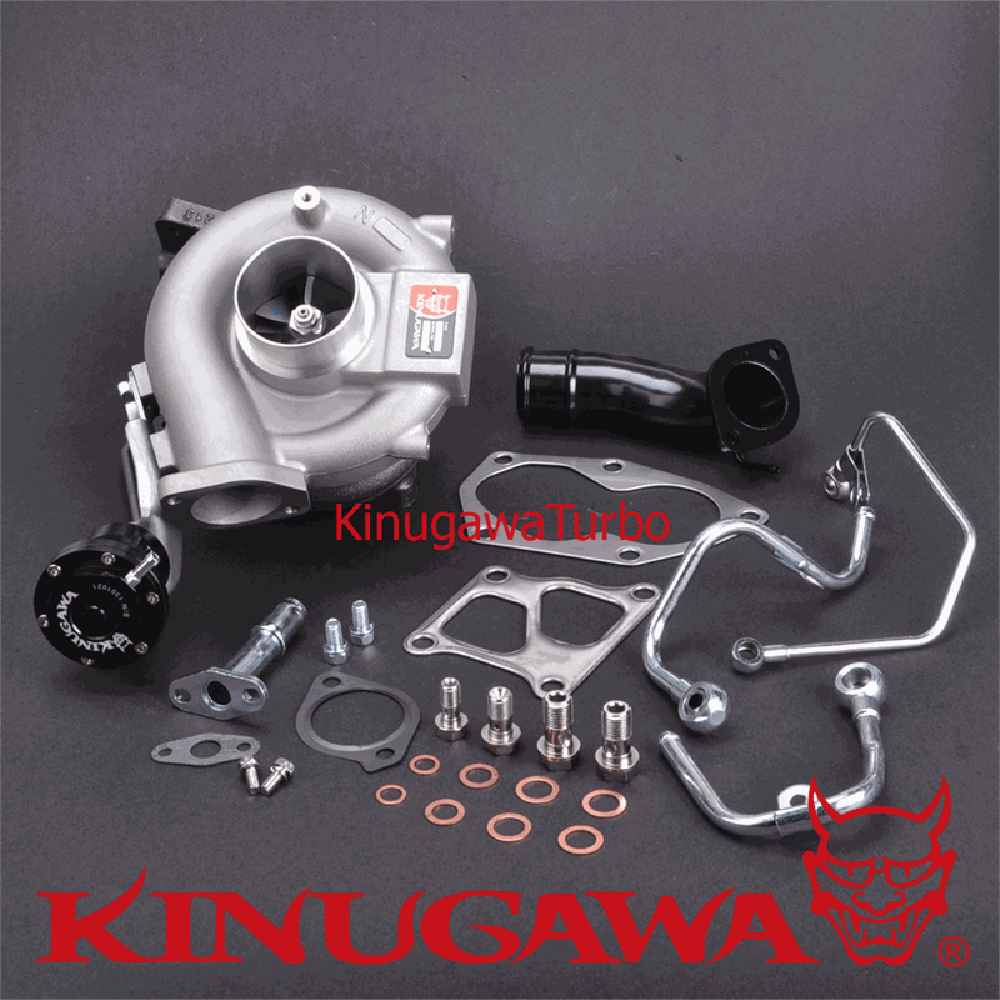

(Everything shown on 1ST picture included)
- 1.2 Bar / 18 psi spring will be installed on this adjustable actuator.
- 0.3bar, 0.5bar, 0.8bar, 1.0bar, 1.2bar, 1.5bar, 1.8bar and 2.0bar spring is available on our ebay shop.
- Turbo Boost Gauge (Free Gift)
|
|
Made by
Notes
|
Kinugawa Turbo
ONE YEAR WARRANTY
|
|
|
|
