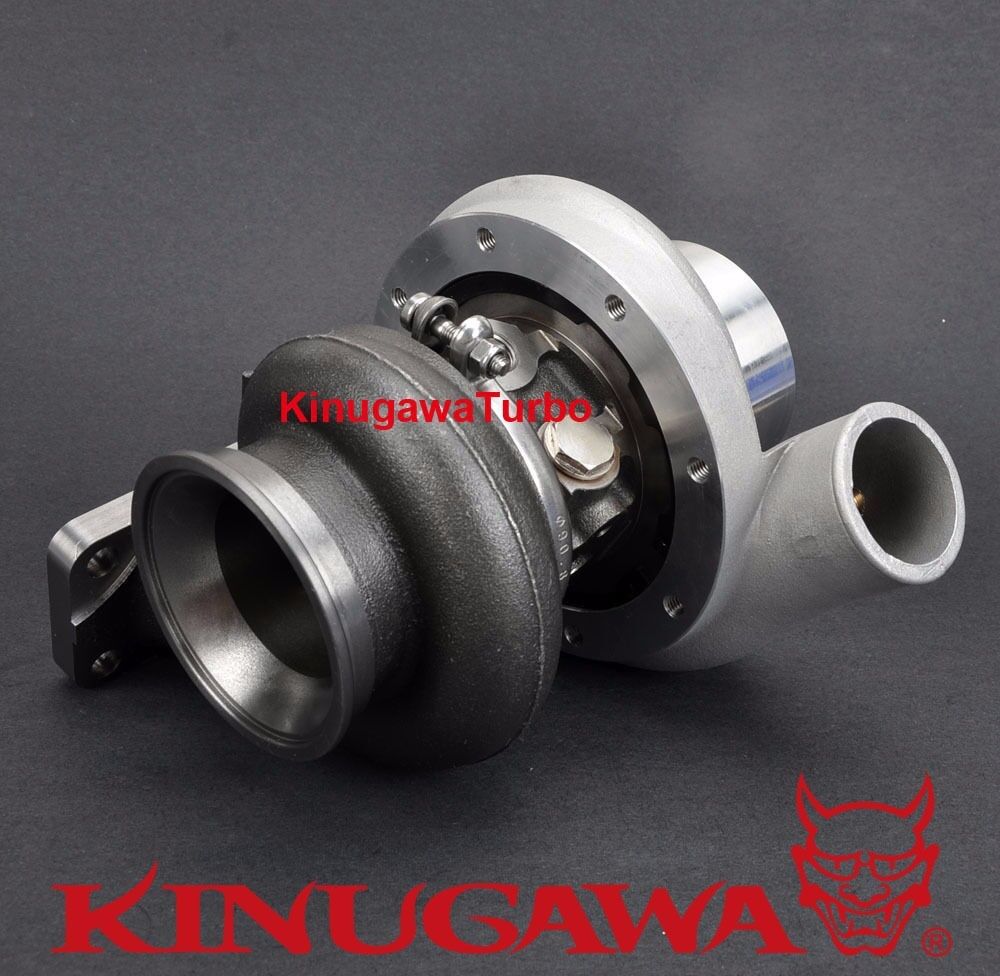

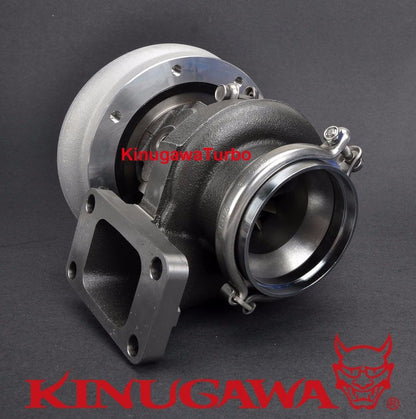

Kinugawa Billet Turbocharger 3" Anti-Surge TD05H-20G w/ T3/8cm/V-Band Housing

Application
- Universal type
- 1800~2500cc

Wheel Spec.

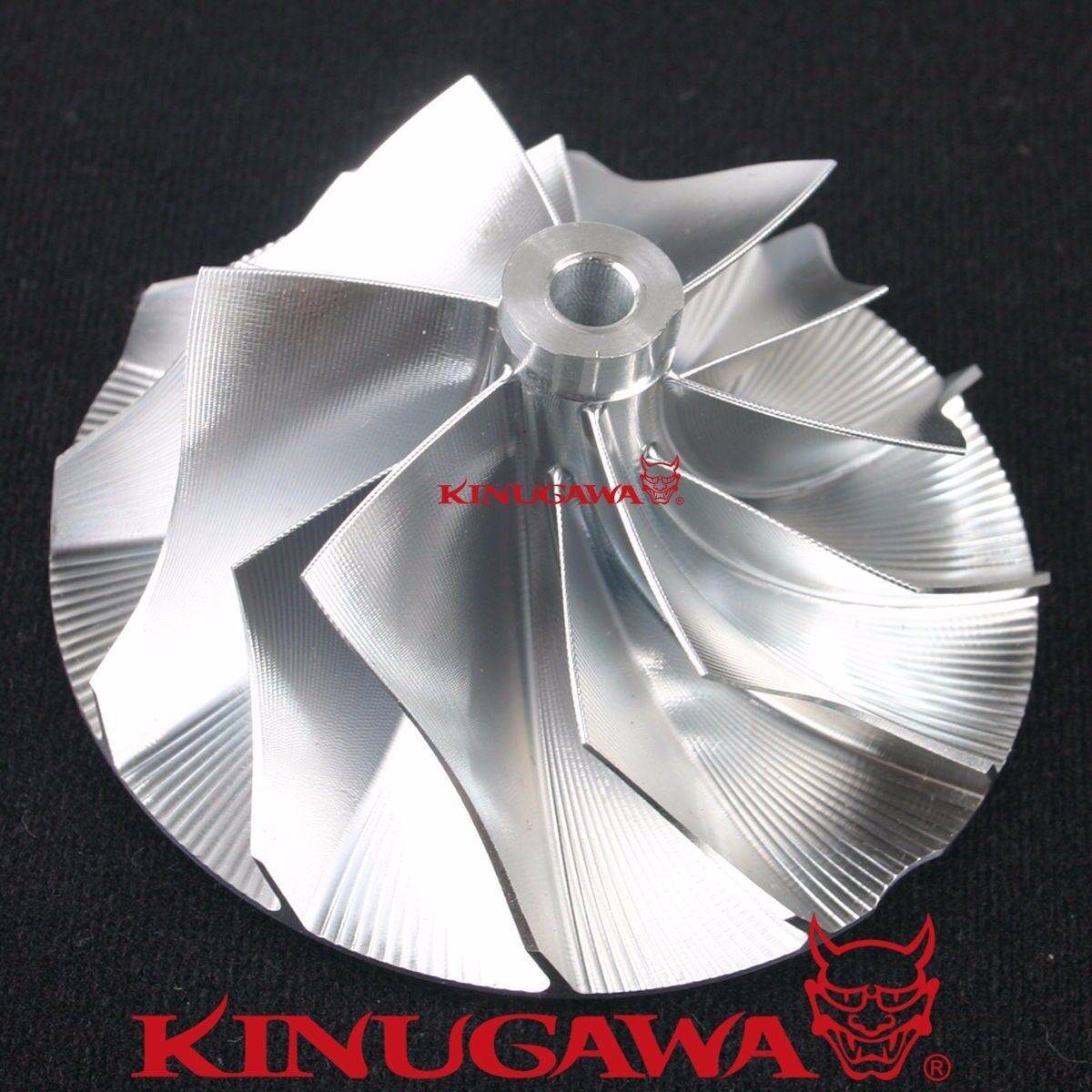

Compressor wheel: 52.5 / 68 mm (20G Billet Wheel)
Turbine wheel: 55.8 / 49.1 mm (TD05H inconel wheel)

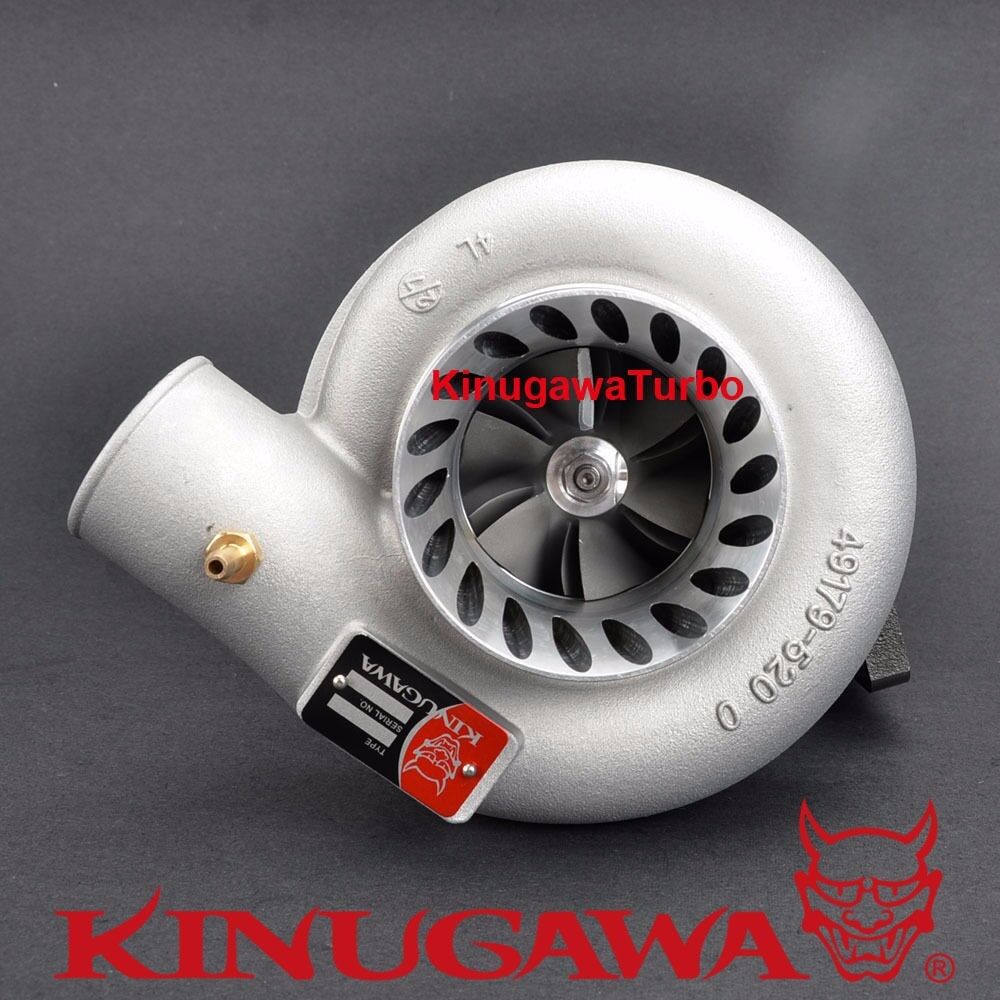

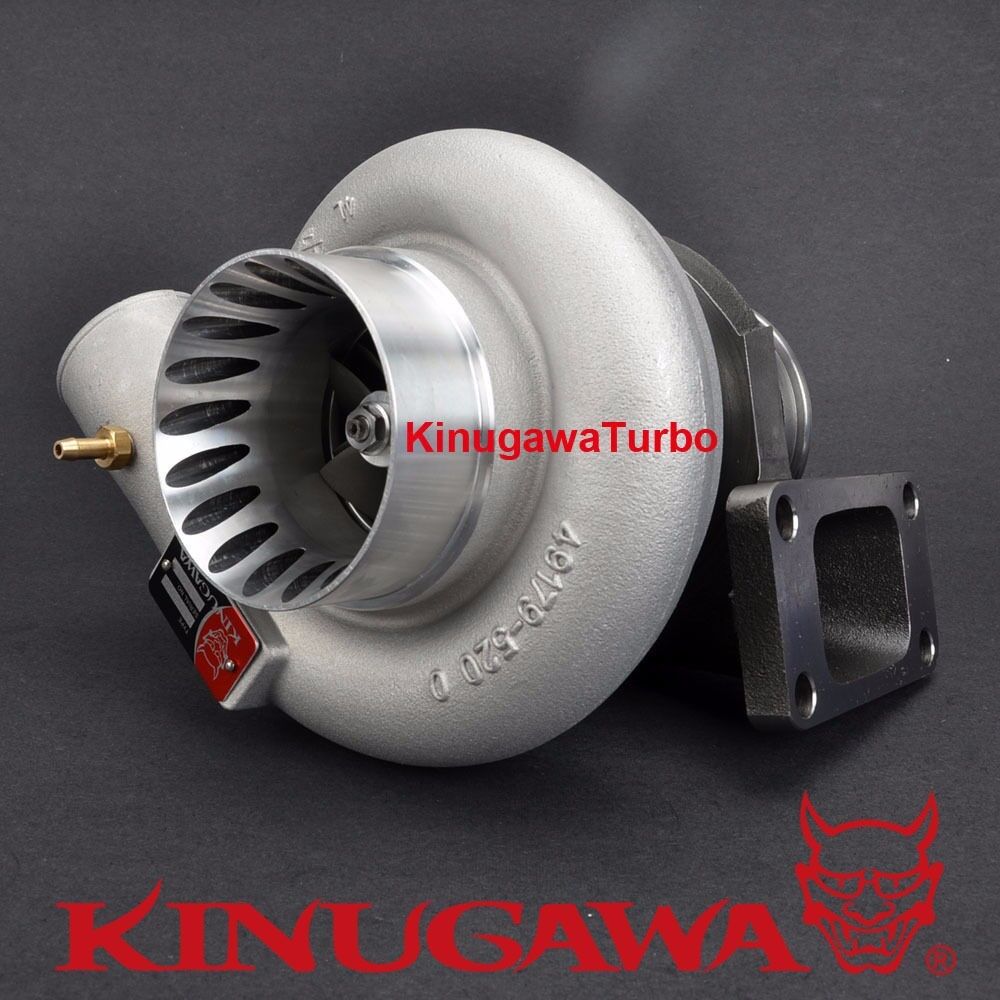

Compressor Housing
- A/R 60
- Compressor inlet : 76mm / 3”
- Compressor outlet : 51mm / 2”

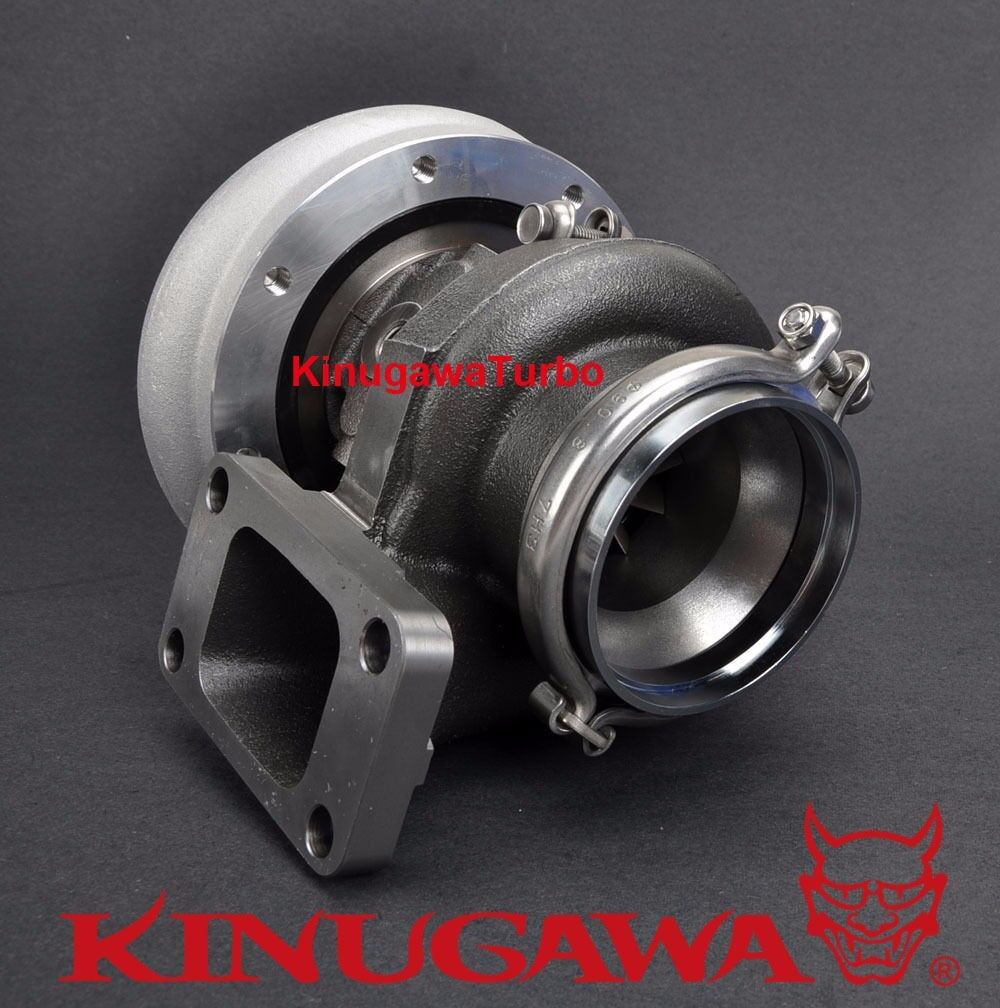

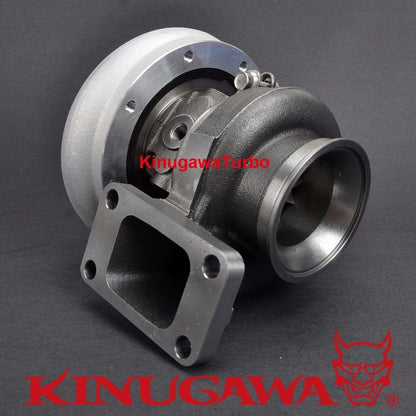

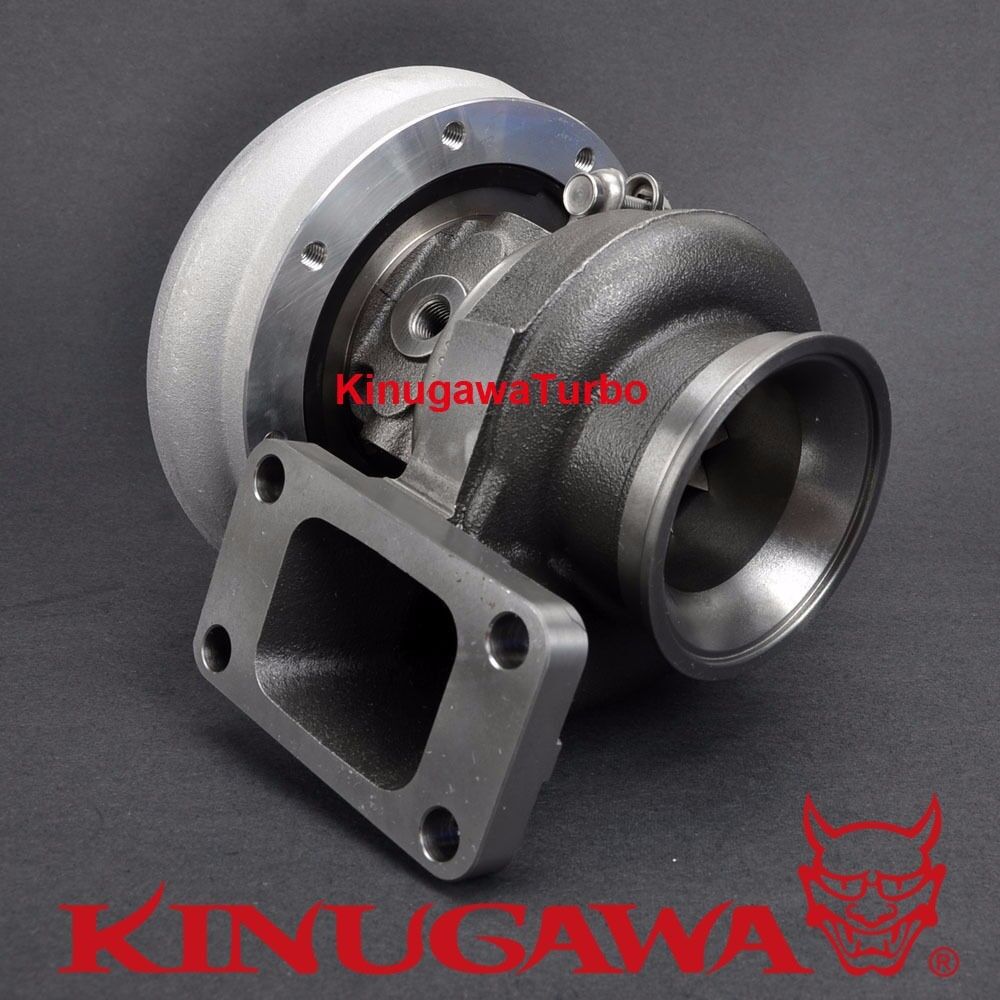

Turbine Housing
- 8cm / AR61 / T3 flanged / external gated turbine housing

Bearing System
Journal bearing / performance thrust bearing kit

Cooling System
Oil & water cooled system　

Max HP
- 300~400 HP

Boost Limit
- 2.8 bar (based on performance bearing kit with larger thrust bearing )

Suggested Limit
- 1.5 bar / 22 Psi

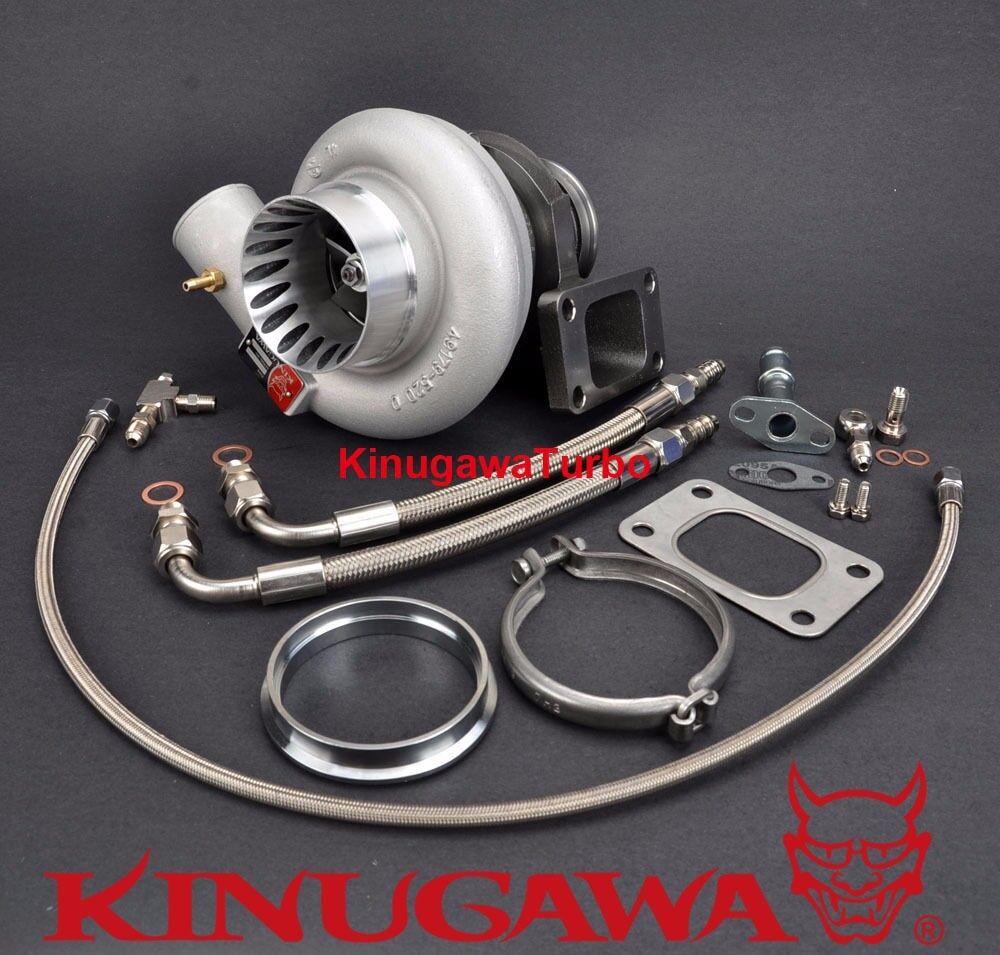

Kit includes
1 x Oil feed line kit ( 70cm Braided Line )
1 x Oil drain pipe kit
1 x T3 turbine inlet gasket
2 x 20cm 6AN water line kit
1 x V-band pipe adapter
(Comes with everything shown)
- 1.0 bar / 15 psi spring preinstalled
- Actuator can be easily rotated 360 degrees

Warranty
ONE YEAR WARRANTY
