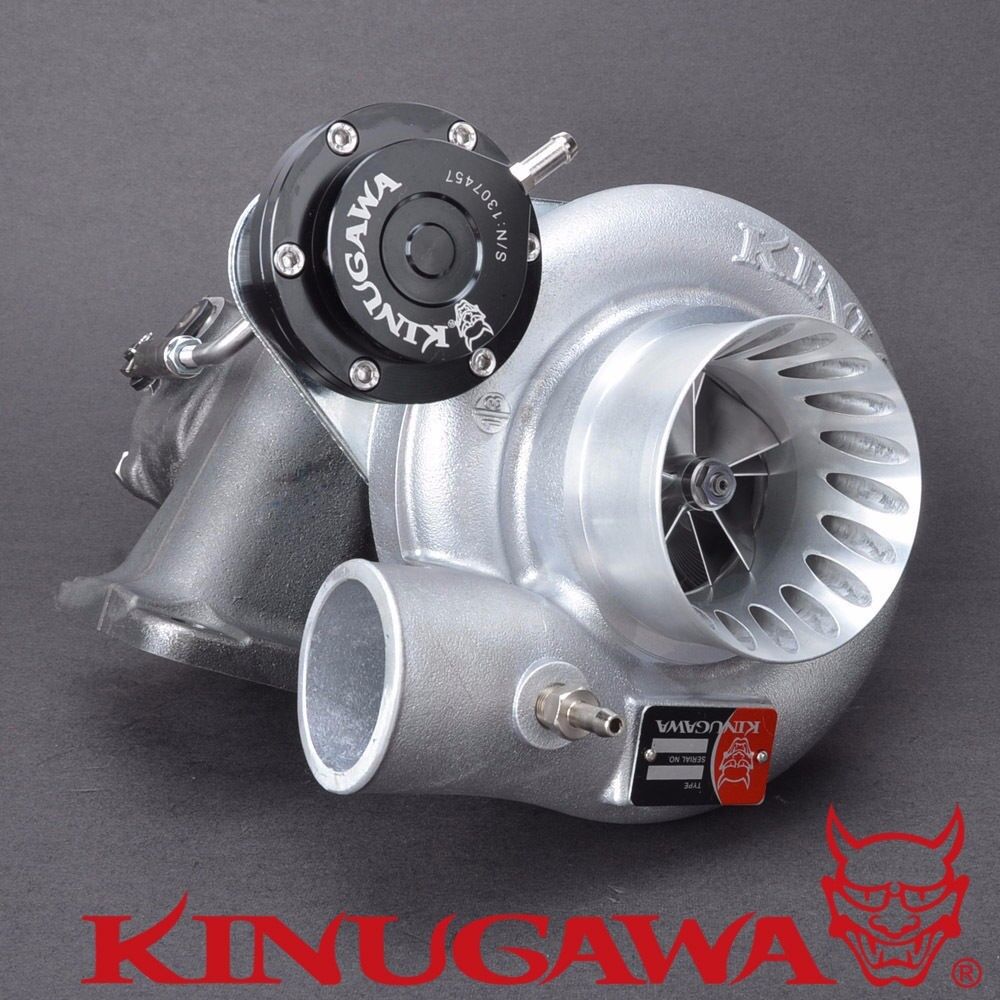

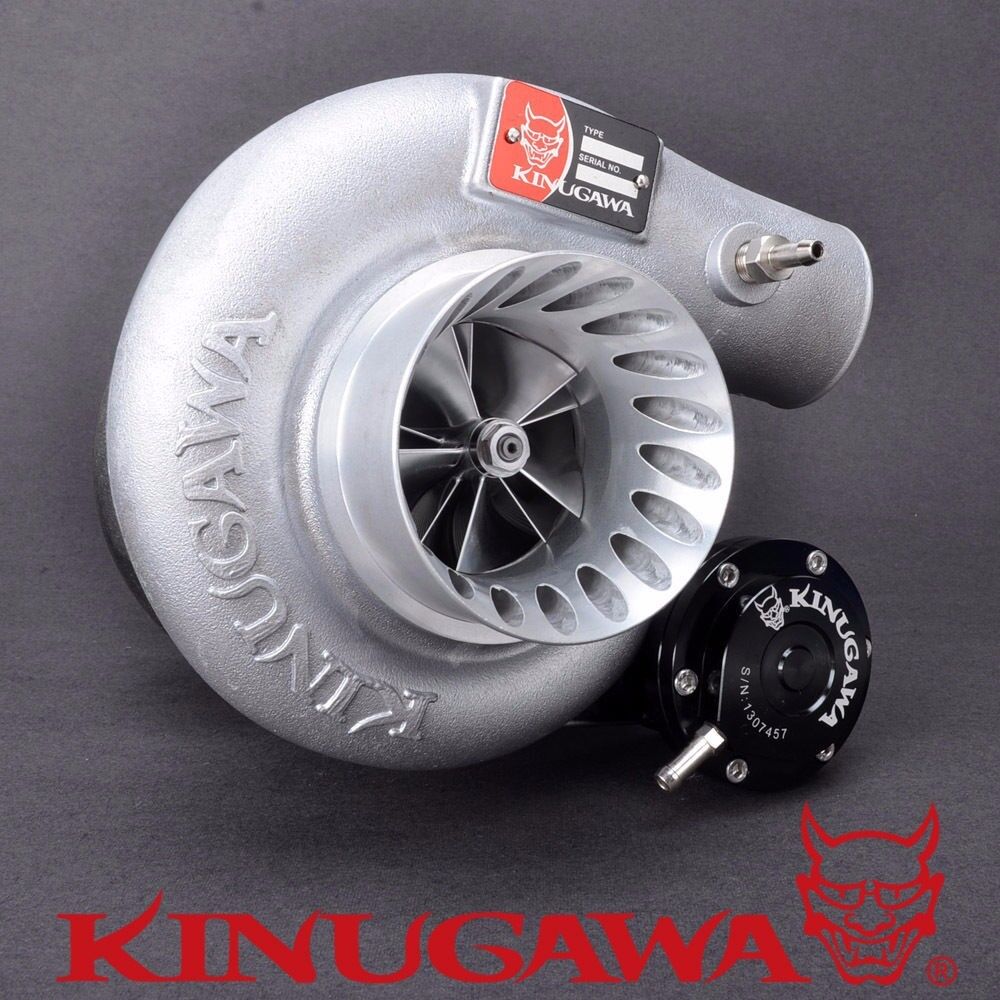

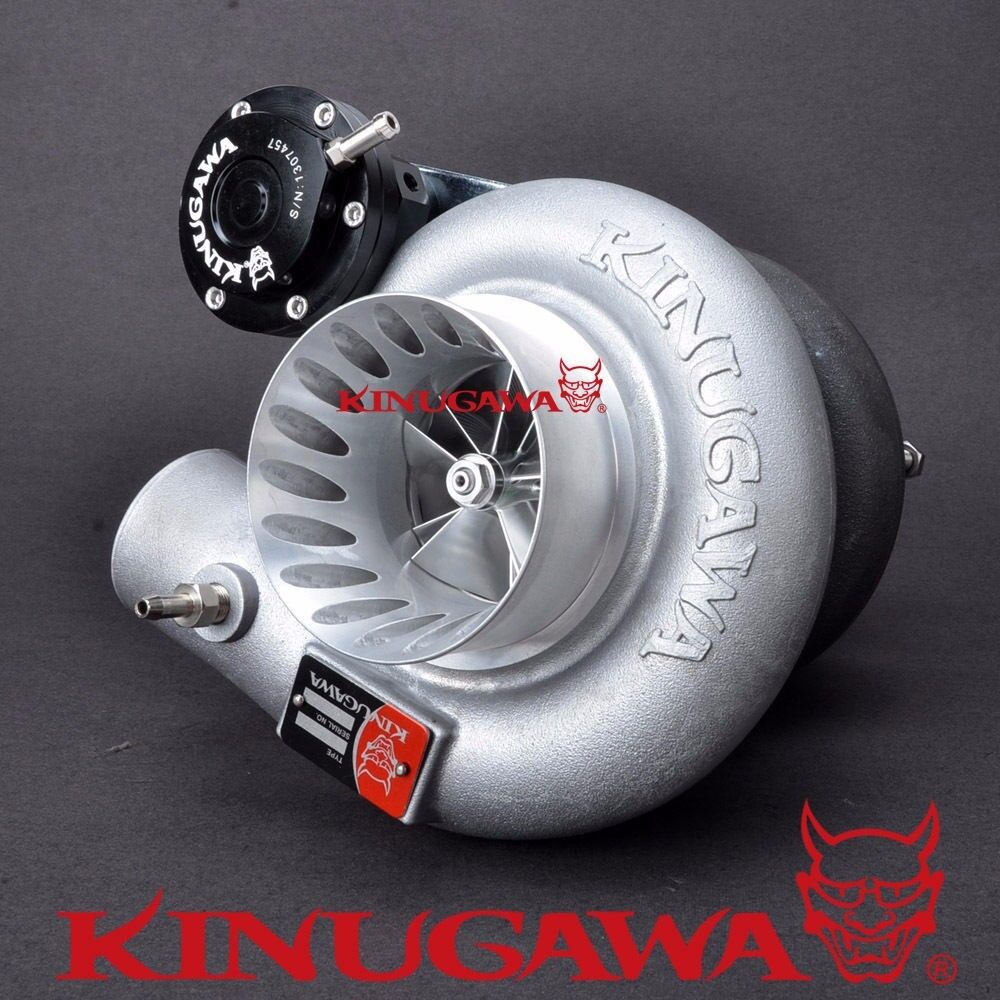

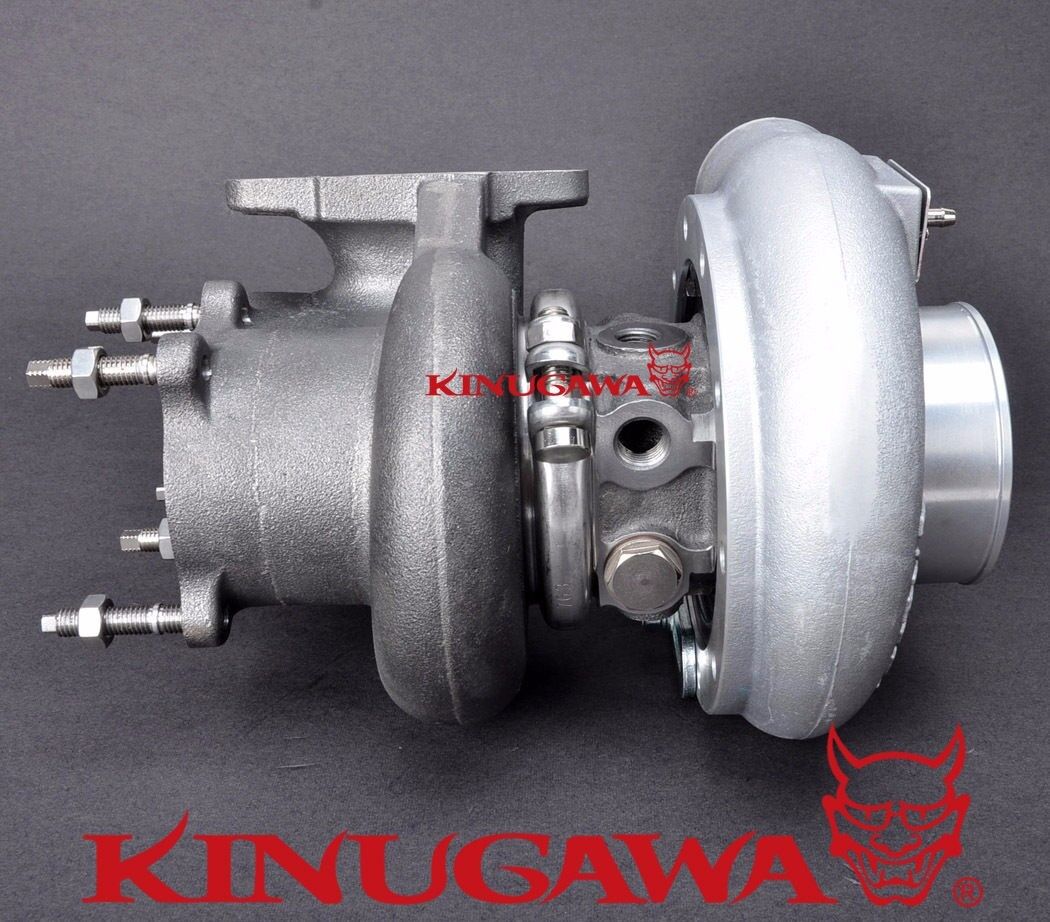

Kinugawa Billet Turbo FOR Anti Surge RB20 RB25DET TD05H-16G 10cm Bolt-On 3"

Application
- Nissan RB20DET / RB25DET Skyline R31 R32 R33 R34
- Universal application: 2000~3500cc

Wheel Spec
- Compressor wheel: 48.3/68 mm (EVO3-16G Wheel)
- Turbine wheel: 49.2 / 56 mm (TD05H / 12 blade )

Compressor Housing
- A/R 60
- Compressor inlet : 80.5 mm / 3.15”
- Compressor outlet : 51mm / 2”

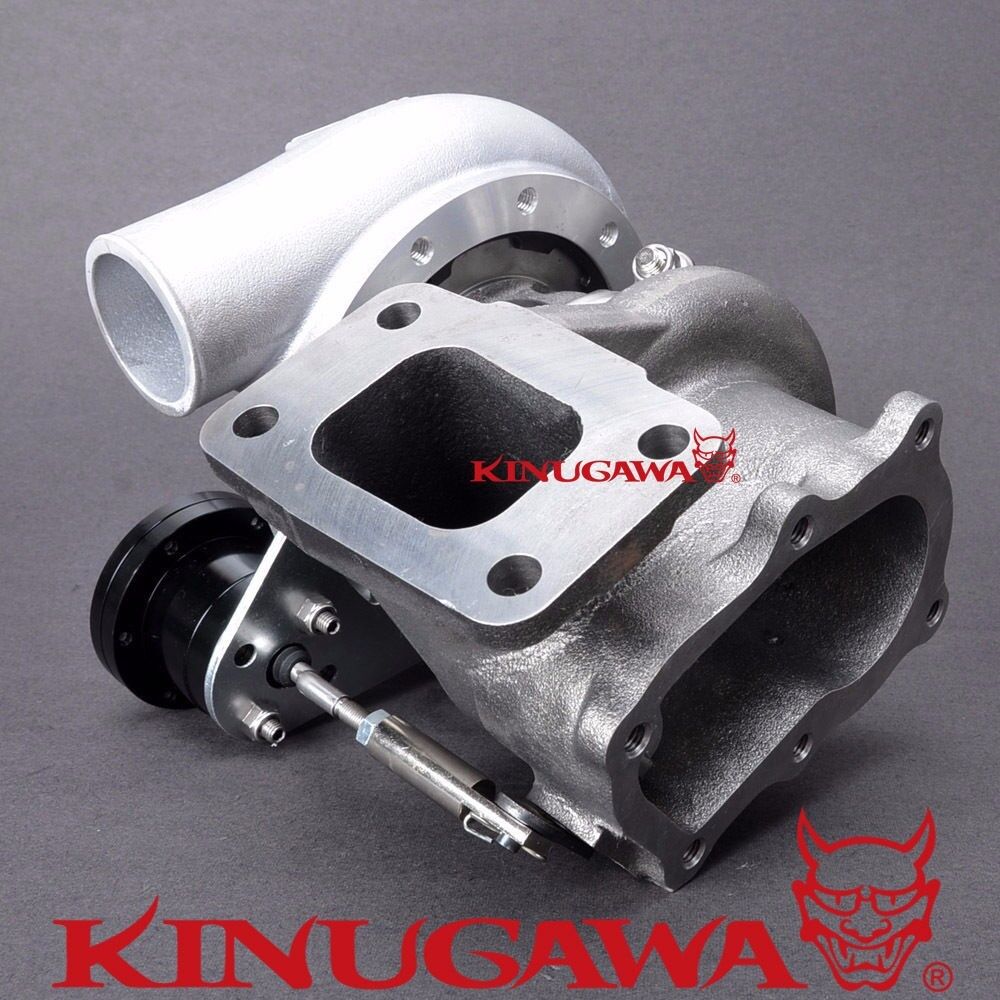

Turbine Housing
- 10cm (A/R .73)
- T3 inlet flange
- Internal gate
- Bolt on to fit stock exhaust manifold and dump pipe.

Bearing System
Journal bearing / Kamak performance thrust bearing kit

Cooling System
Oil and water cooled system　

Boost Limit
2.8 Bar

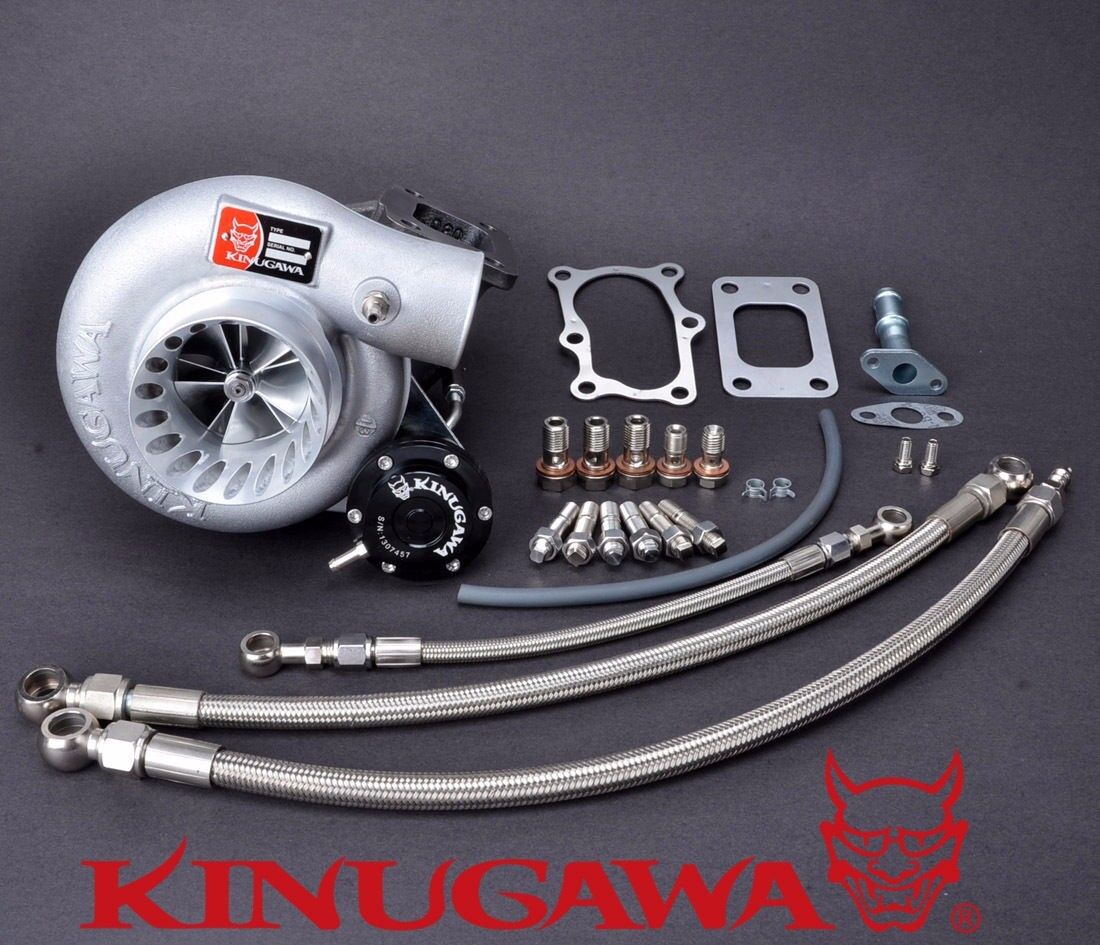

Kit includes

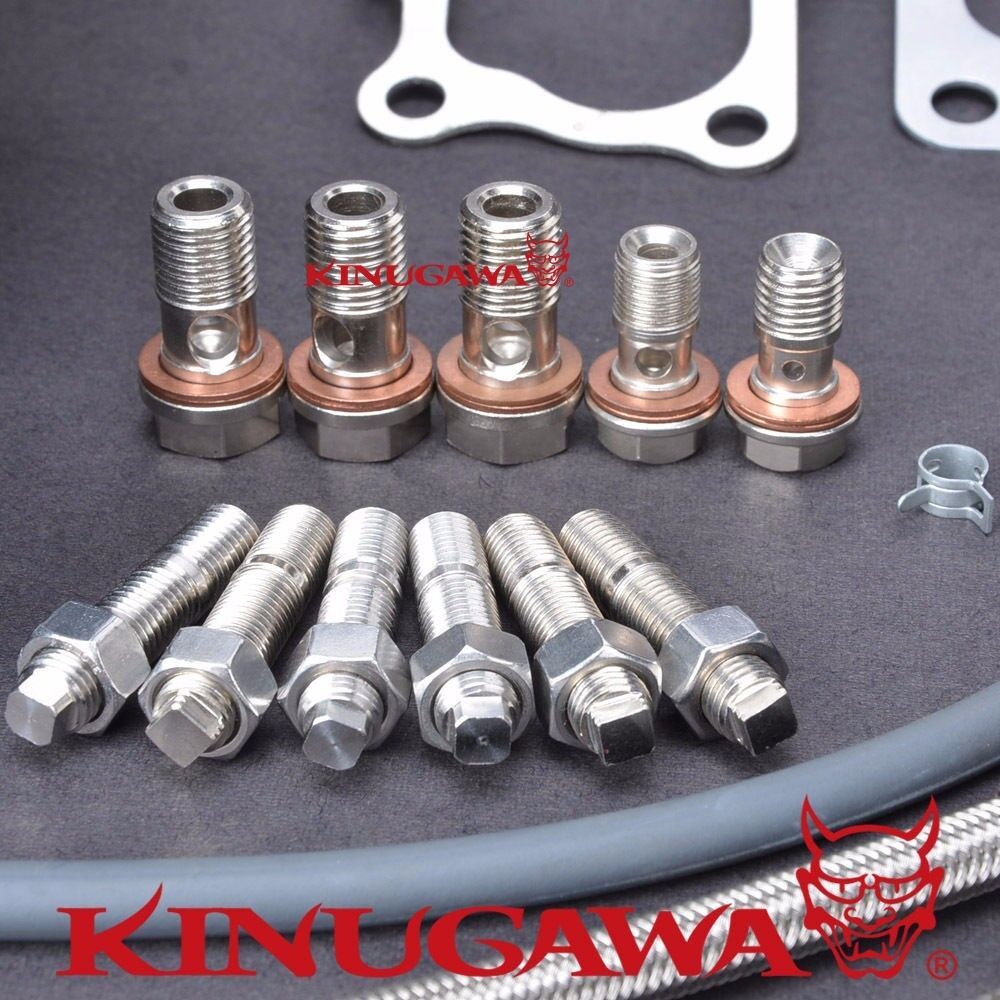

(Everything shown on picture included)
- 1.0 bar / 15 PSI spring installed.
- Actuator can be easily rotated 360 degrees.
