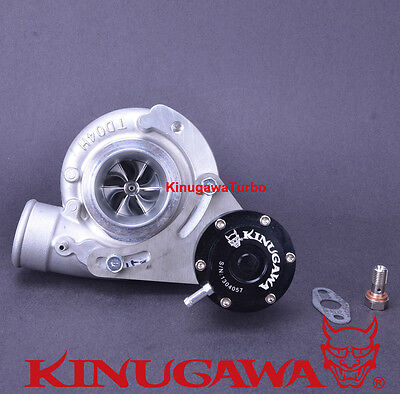

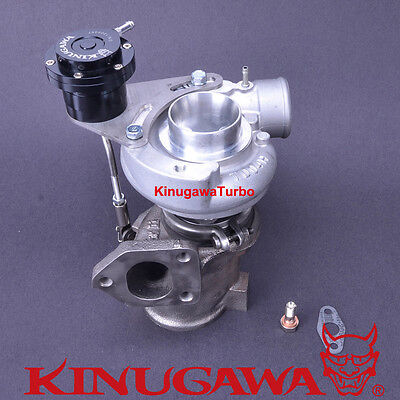

Kinugawa Billet Turbo Cartridge & Cover BMW 525 325 TDS E34 M51 TD04-15T + 50%HP

Application
- BMW 77-06400 / 49177-06400 / 2243396 Turbocharger

Wheel Spec.
Compressor Wheel : 42mm/56mm (Inducer / Exducer Diameter) /(TD04-15T)
Turbine Wheel : 47.2 / 40 mm (Inducer / Exducer Diameter) ( Standard TD04)

Warranty
-One year Warranty

Bearing & Cooling system
Journal Bearing

Oil Cooled System
Cooling System
-Turbine Housing is NOT included

Parts Include
- TD04 cover machined to fit 15T wheel.

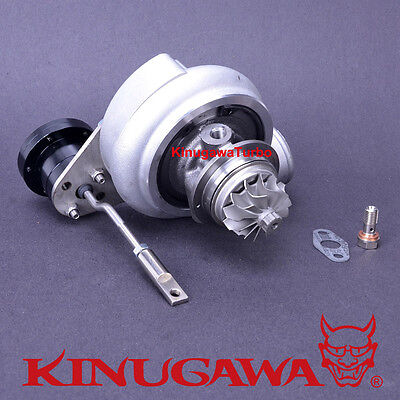

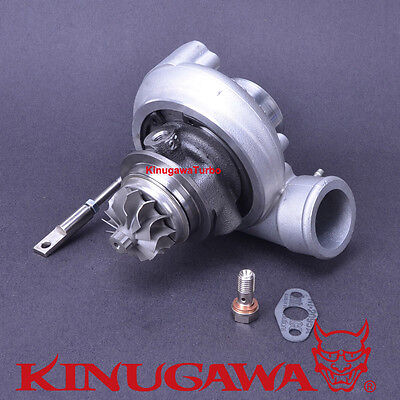

- TD04-15T cartridge with Billet Compressor Wheel

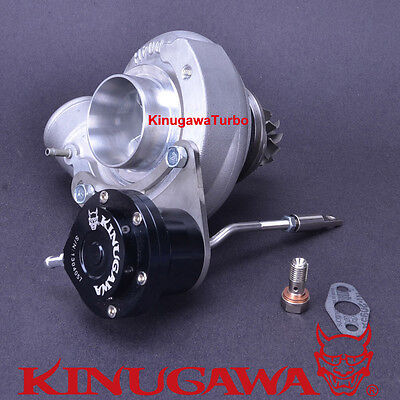

- 1.2bar / 18 Psi Actuator

Situation
- Brand New
- Complete cartridge was balanced on Schenck MBRS 110 the best balance machine in the world to make sure it can work well.
- Ready to work.

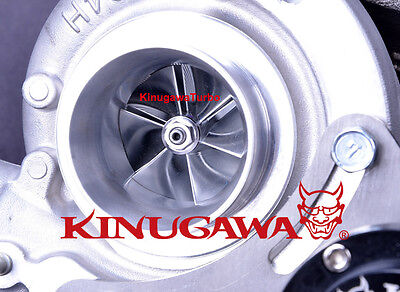

- 15T Compressor wheel will offer additional 50% airflow than stock 11G compressor wheel to get more torque and HP.
-  Bolt up to replace stock CHRA with cover and actuator.
