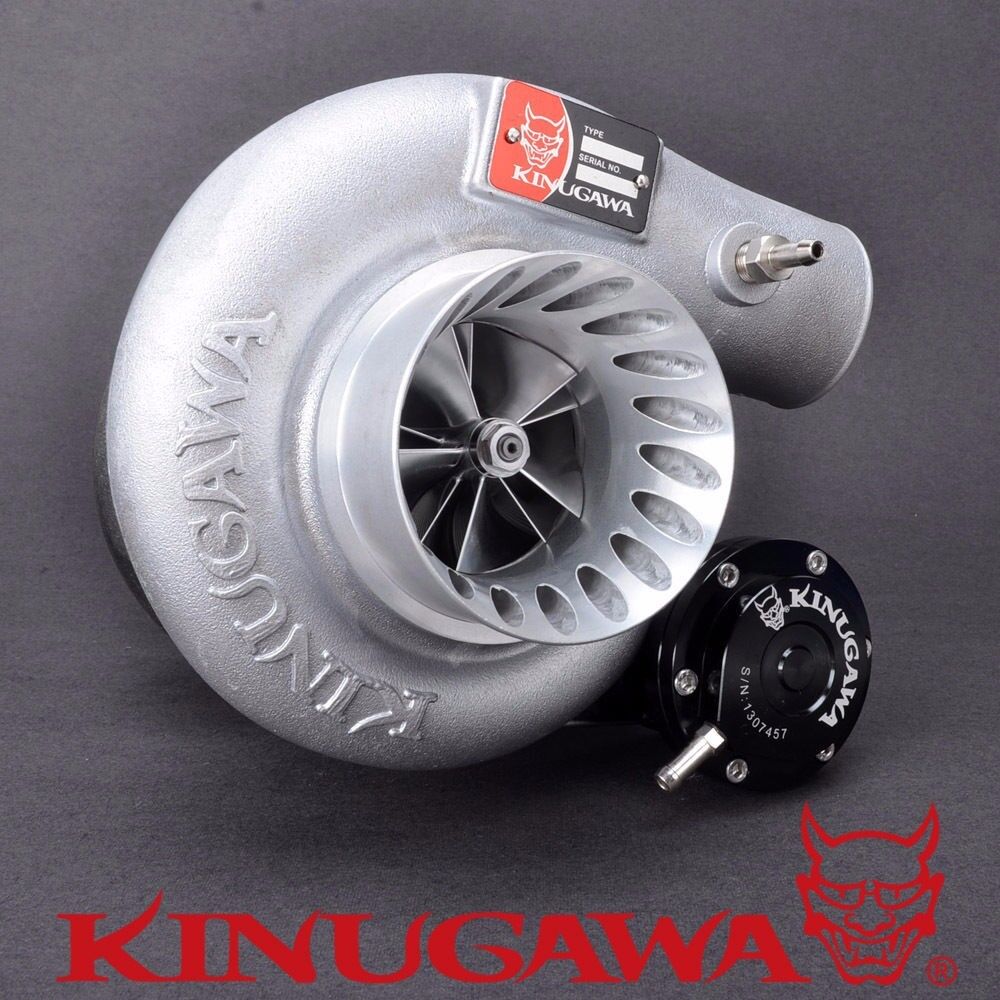

Kinugawa Ball Bearing Turbo FOR Anti Surge RB20DET RB25DET TD05H-20G 8cm 3"

Application
- Nissan RB20DET / RB25DET Skyline
- Universal application: 2000~3500cc

Wheel Spec.
Compressor wheel: 52.5 / 68 mm (20G Billet Wheel)
Turbine wheel: 49.2 / 56 mm (TD05H / 12 blade )

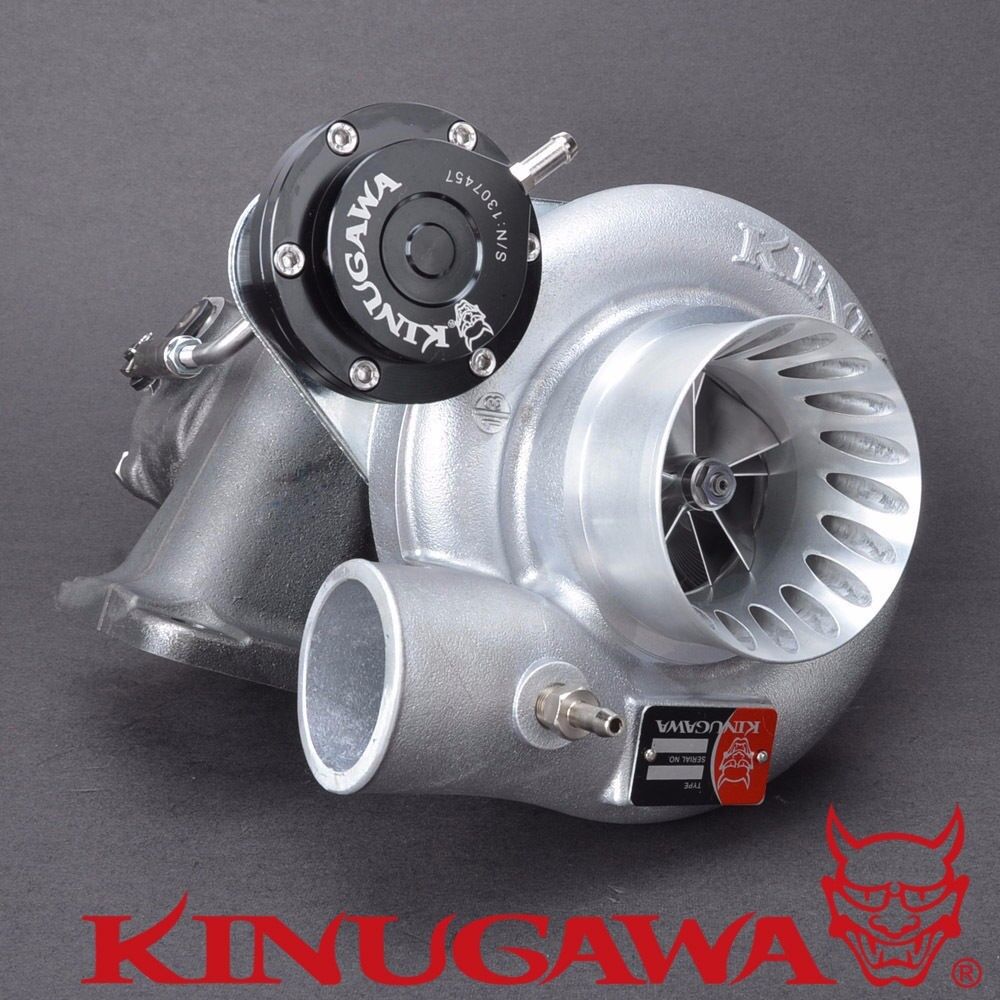

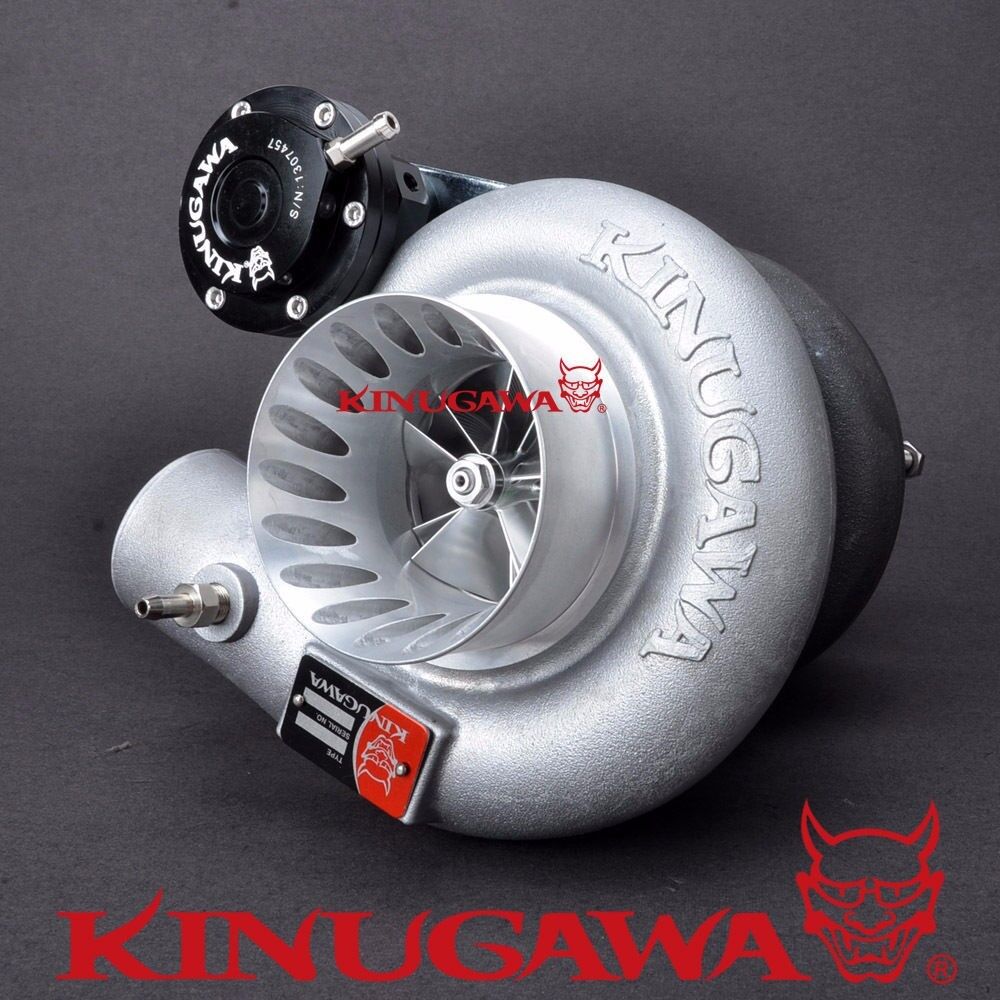

Compressor Housing
- A/R 60
- Compressor Inlet : 80.5 mm / 3.25”  - Compressor Outlet : 51mm / 2”

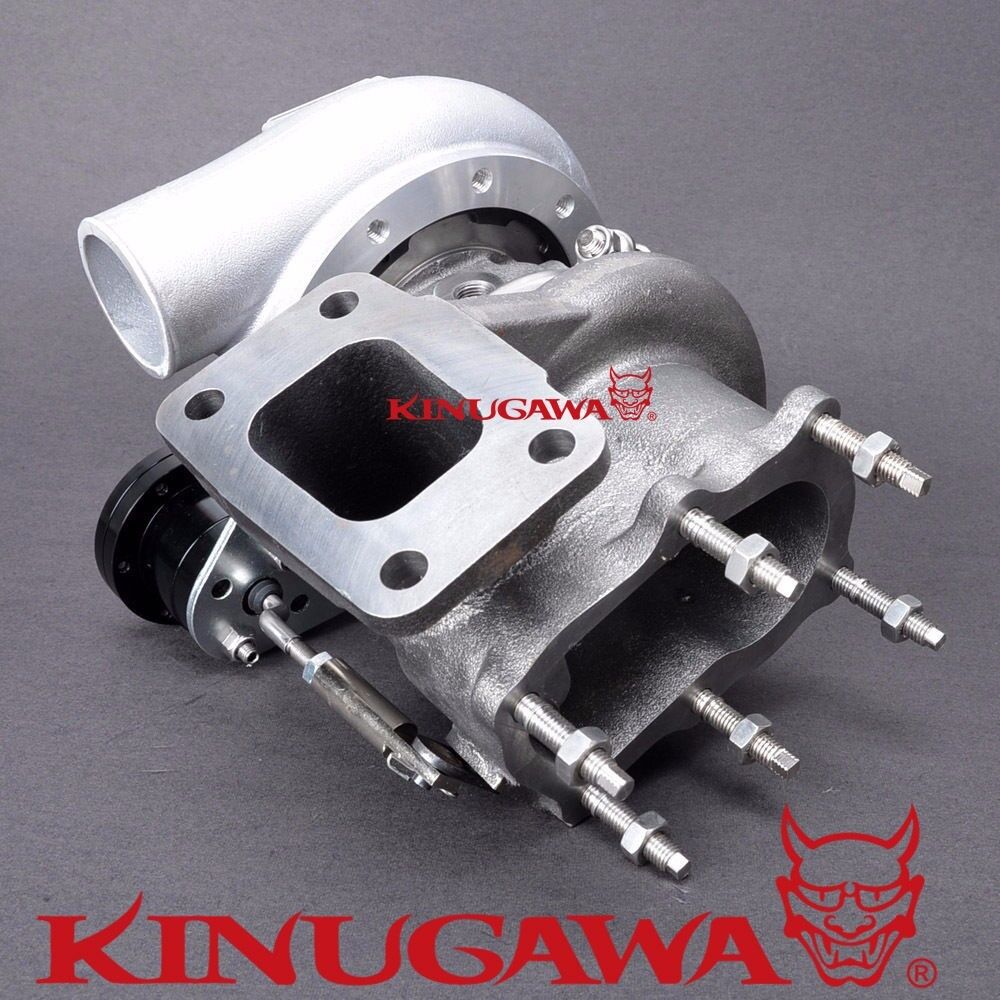

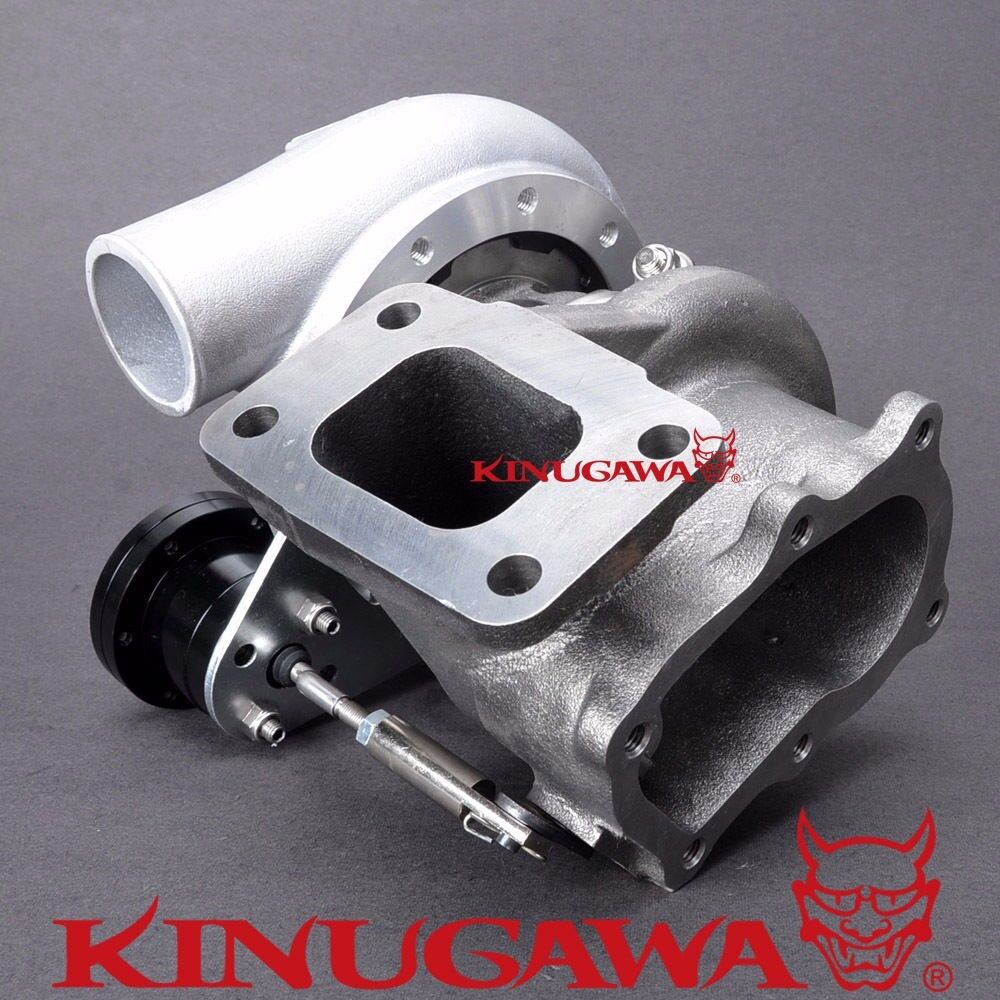

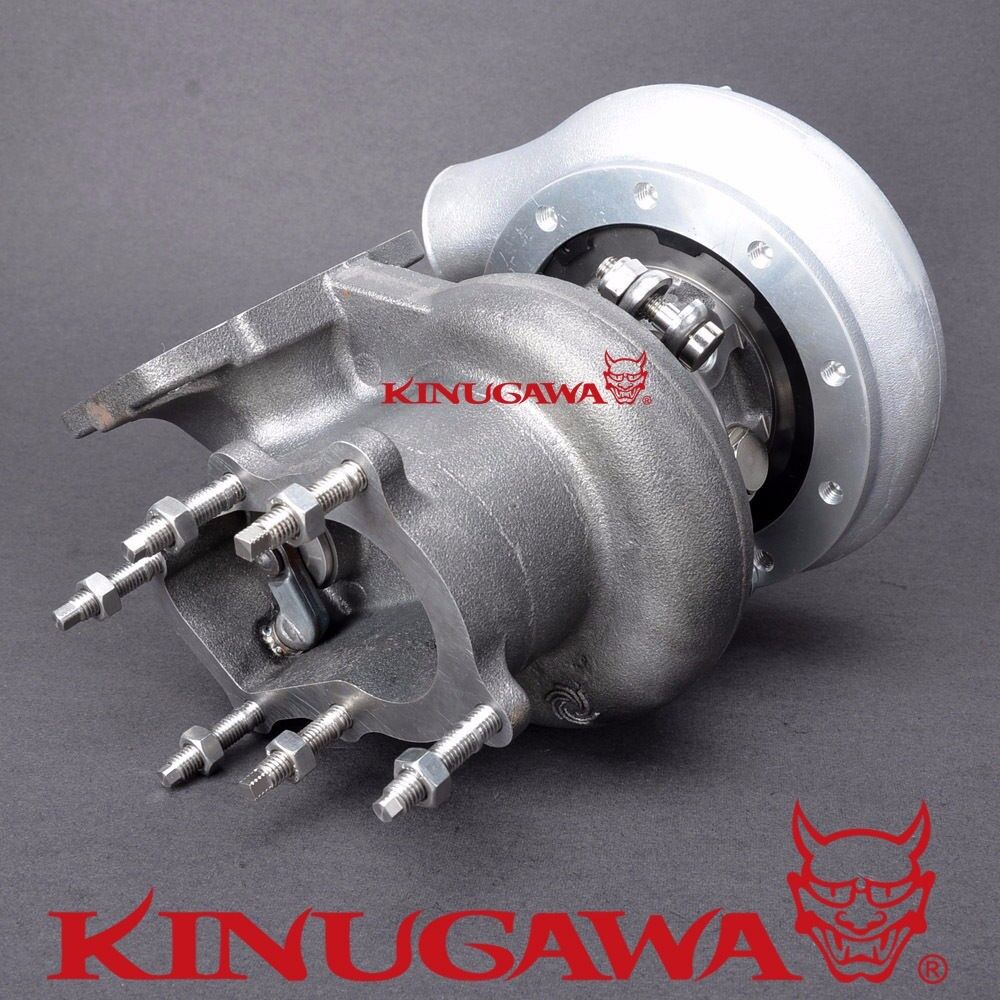

Turbine Housing
- 8cm (A/R .57)
- T3 Inlet Flange
- Internal Gate
- Bolt on to fit stock exhaust manifold and dump pipe.
- Cover inlet and outlet needs to be modified.
- W/G Diameter : 28.0 mm

Bearing System
Ball Bearing

Cooling System
Oil & Water Cooled　

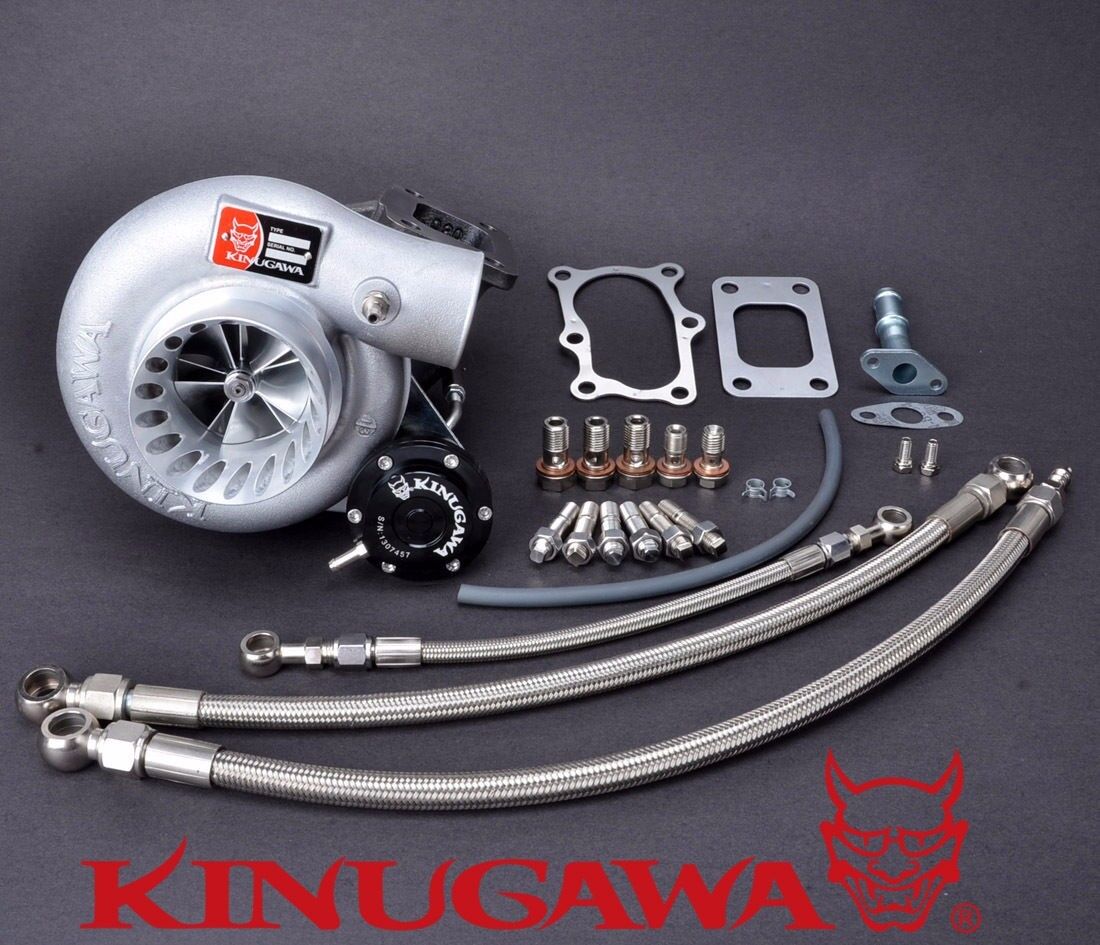

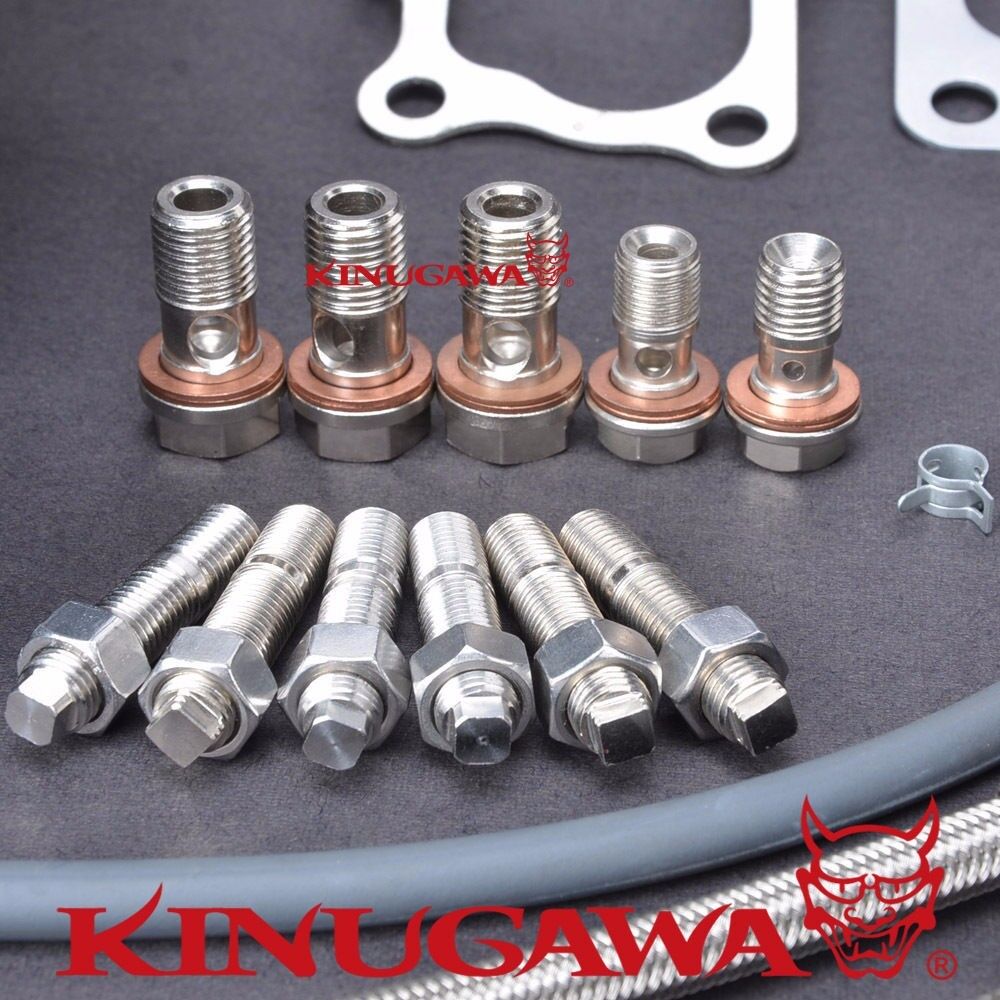

Kit includes
(Everything shown on picture included)
- 1.0 Bar spring installed.
- Actuator position can be 360 Degree rotated easily.

Notes
ONE YEAR WARRANTY
