Kinugawa Adjustable Billet Turbo Turbocharger Actuator Replace Garrett 432340

Name: Kinugawa Adjustable Billet Turbo Turbocharger Actuator Replace Garrett 432340
Brand: KINUGAWA TURBO USA
SKU: 309-05077-001
Price: 119.0 USD
Availability: InStock

$119.00 USD

Sale Sold out

Shipping calculated at checkout.

Product Info:

Item Name

Kinugawa Adjustable Billet Turbo Actuator (Replace all Garrett 432340 Type Turbo Actuator)

Item No.

309-05077-001

Application

Garrett 432340 Series Turbocharger

Available In Kinugawa Warehouse	Garrett Part No.	Pressure
Available In Kinugawa Warehouse	Garrett Part No.	Bars	p.s.i.
yes	432340-0001	0.80-0.83	11.6-12.1
yes	432340-0002	0.92-0.96	13.3-13.9
yes	432340-0003	0.78-0.83	11.4-12.1
yes	432340-0004	0.92-0.96	13.3-13.9
yes	432340-0005	0.92-0.96	13.3-13.9
yes	432340-0006	0.80-0.83	11.6-12.1
yes	432340-0007	0.92-0.96	13.3-13.9
yes	432340-0008	0.78-0.83	11.4-12.1
yes	432340-0009	0.76-0.78	11.0-11.4
yes	432340-0010	0.92-0.96	13.3-13.9
yes	432340-0011	0.50-0.51	7.2-7.4
yes	432340-0012	0.80-0.83	11.6-12.1
yes	432340-0013	0.28-0.29	4.1-4.2
yes	432340-0014	0.88-0.92	12.7-13.3
yes	432340-0015	0.88-0.97	12.7-14.0
yes	432340-0016	0.37-0.38	5.4-5.5
yes	432340-0017	1.08-1.13	15.6-16.4
yes	432340-0018	0.56-0.58	8.1-8.4
yes	432340-0019	0.56-0.58	8.1-8.4
yes	432340-0021	0.33-0.34	4.8-4.9
yes	432340-0022
yes	432340-0025	0.86-0.90	12.5-13.1
yes	432340-0026	0.28-0.31	4.0-4.5
yes	432340-0027	0.72-0.74	10.4-10.7
yes	432340-0030	0.85-0.98	12.3-14.2
yes	432340-0031*	1.02	14.7
yes	432340-0032*	0.65	9.4
yes	432340-0033	0.37-0.38	5.4-5.5
yes	432340-0034	0.92-0.96	13.3-13.9
yes	432340-0035
yes	432340-0036	0.78-0.83	11.4-12.1
yes	432340-0037	0.87-0.90	12.5-13.1
yes	432340-0043	1.40-1.60	20.3-23.2
yes	432340-0044
yes	432340-0045	1.12-1.21	16.2-17.5
yes	432340-0046
yes	432340-0052*	1	14.7
yes	432340-0055	0.85-0.98	12.3-14.2
yes	432340-0060	1.08-1.13	15.6-16.4
yes	432340-0062	0.78-0.80	11.3-11.6
yes	432340-0063	0.74-0.77	10.7-11.2
yes	432340-0064	1.08-1.13	15.6-16.4
yes	432340-0065	0.74-0.77	10.7-11.2
yes	432340-0068*	0.51	7.4
yes	432340-0073
yes	432340-0074	1.19-1.21	17.2-17.6
yes	432340-0075
yes	432340-0078
yes	432340-0081	0.86-0.90	12.5-13.1
yes	432340-0082
yes	432340-0087
yes	432340-0115*	0.62	9

Pressure

n 0.3 bar/ 4~5 spring will go with this actuator.

n 0.3 Bar, 0.5 bar, 0.8 bar, 1 bar, 1.2 bar and 1.5 bar actuator available.

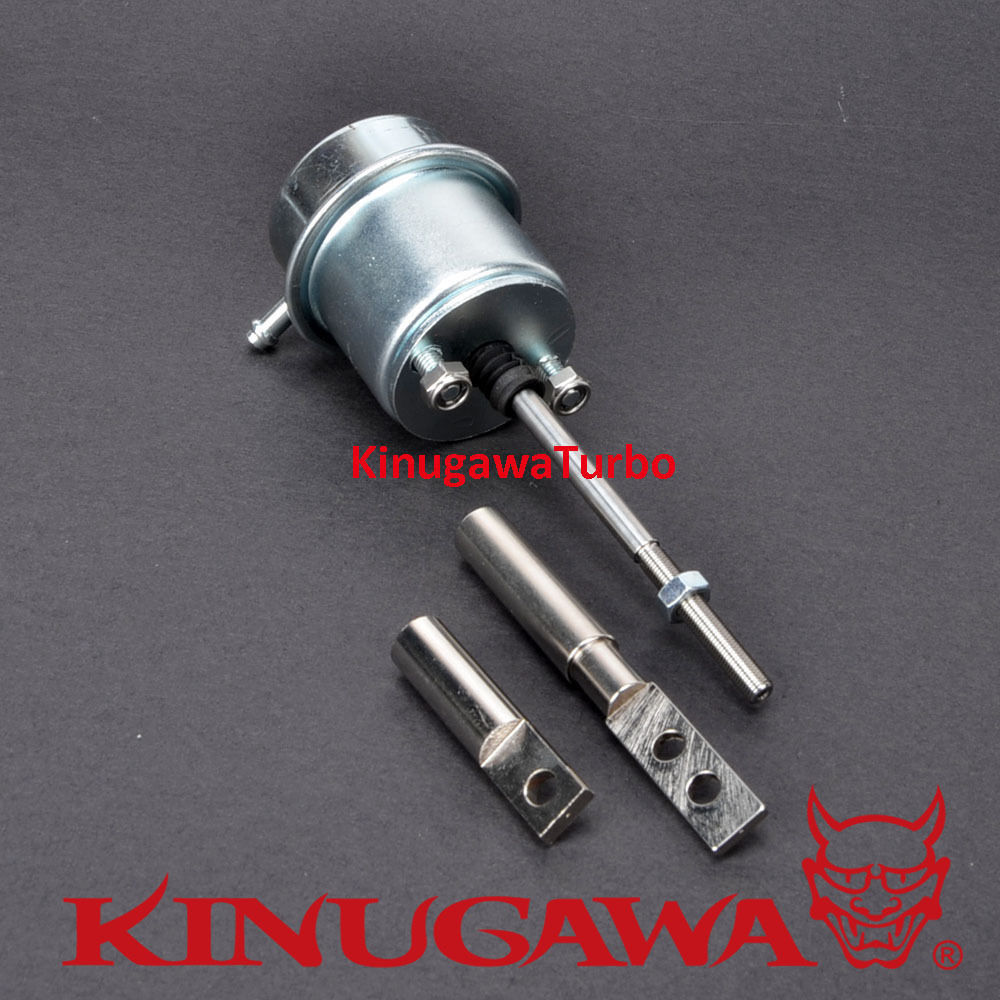

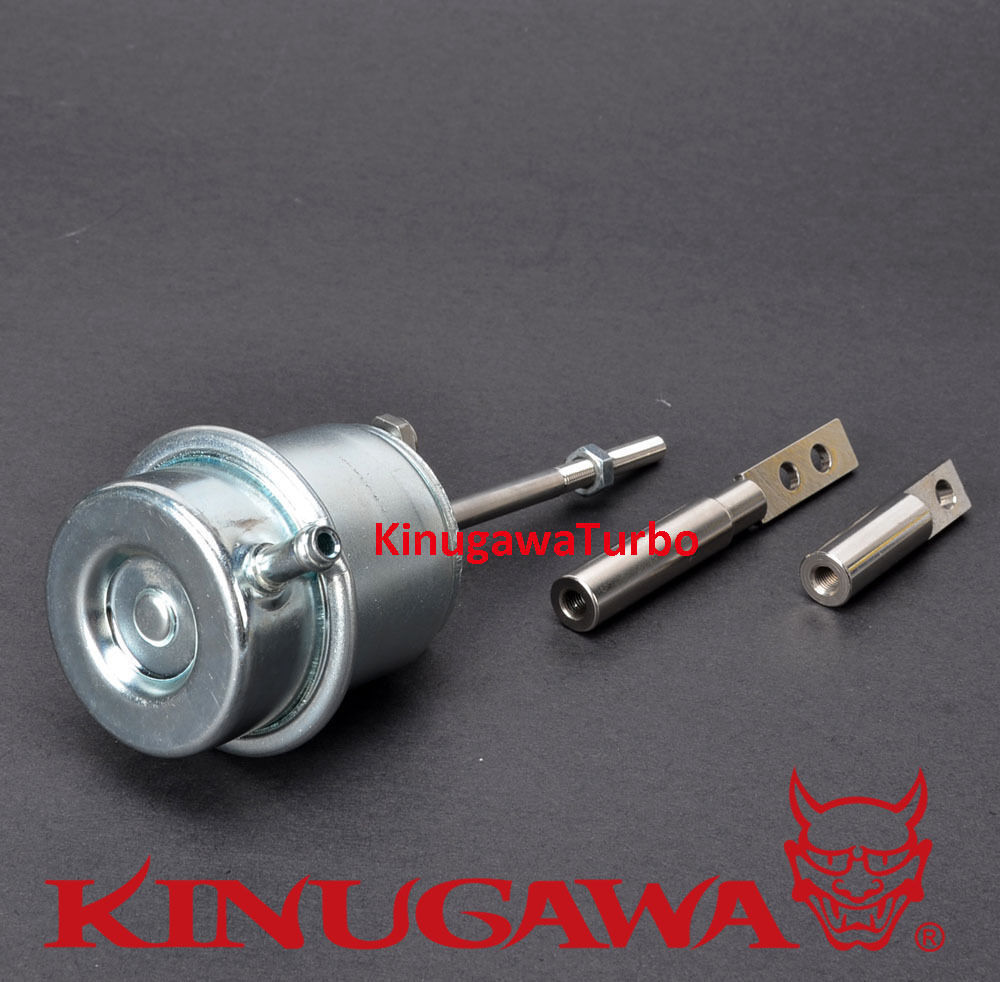

Length between back of actuator head and central hole of the rod end fitting (6.0mm Hole) :

- Straight Rod + short end fitting : 120 ~ 140 mm

- Straight Rod + Long End Fitting : 140~ 168 mm

- Bent Rod + Short End Fitting : 100 ~ 120 mm

- Bent Rod + Long End Fitting : 123 ~ 145 mm

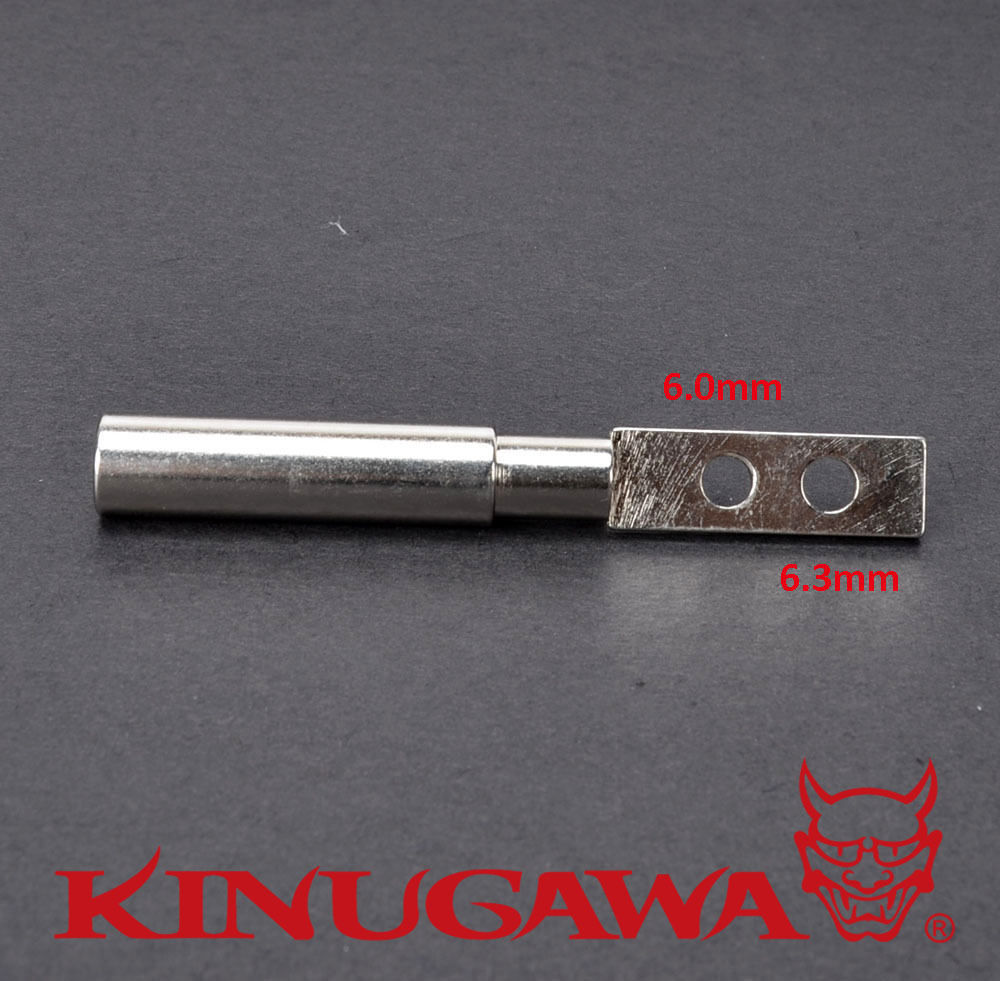

Note : 6.0mm central hole to 6.3mm central hole distance : 13mm

Rod Thread : M6x0.75mm

Quantity

n 1x actuator

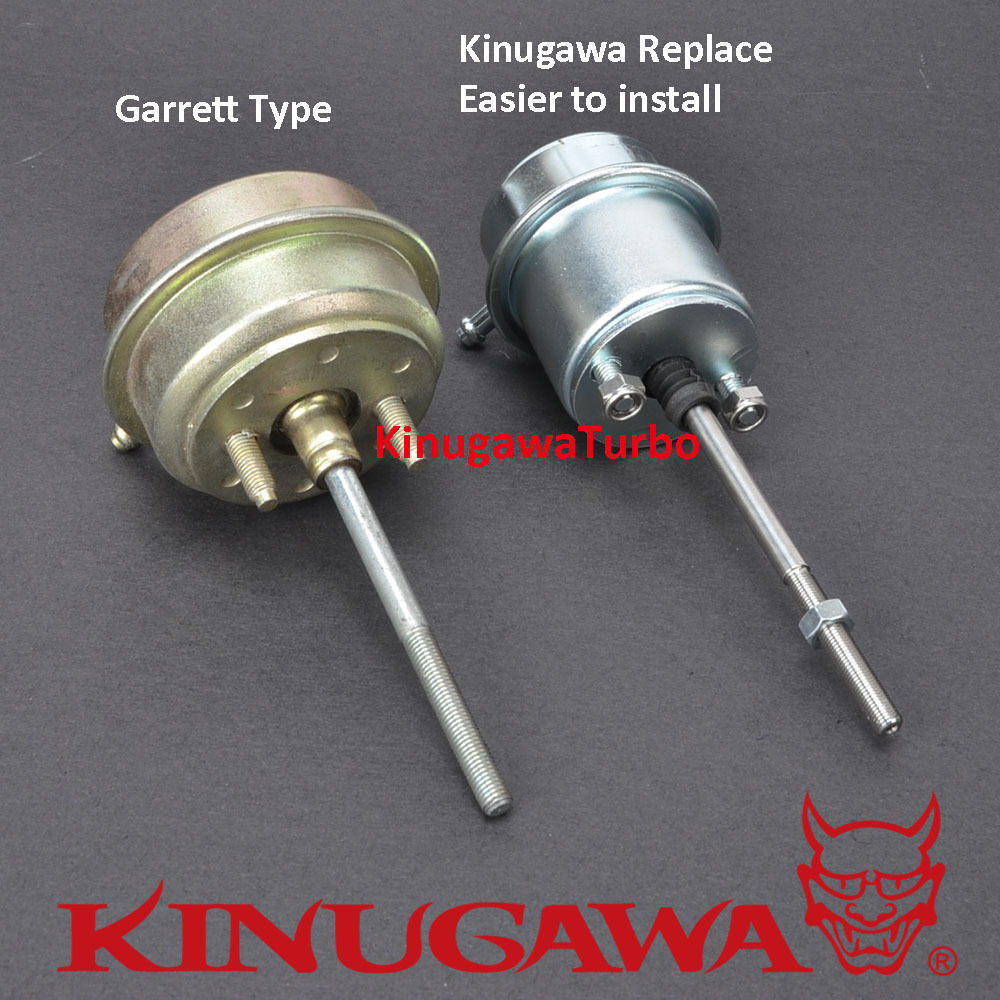

( All you see on first picture is included )

n Turbo NOT Included

n Brand New

Made By

n Kinugawa Turbo

Warranty

One Year
